English

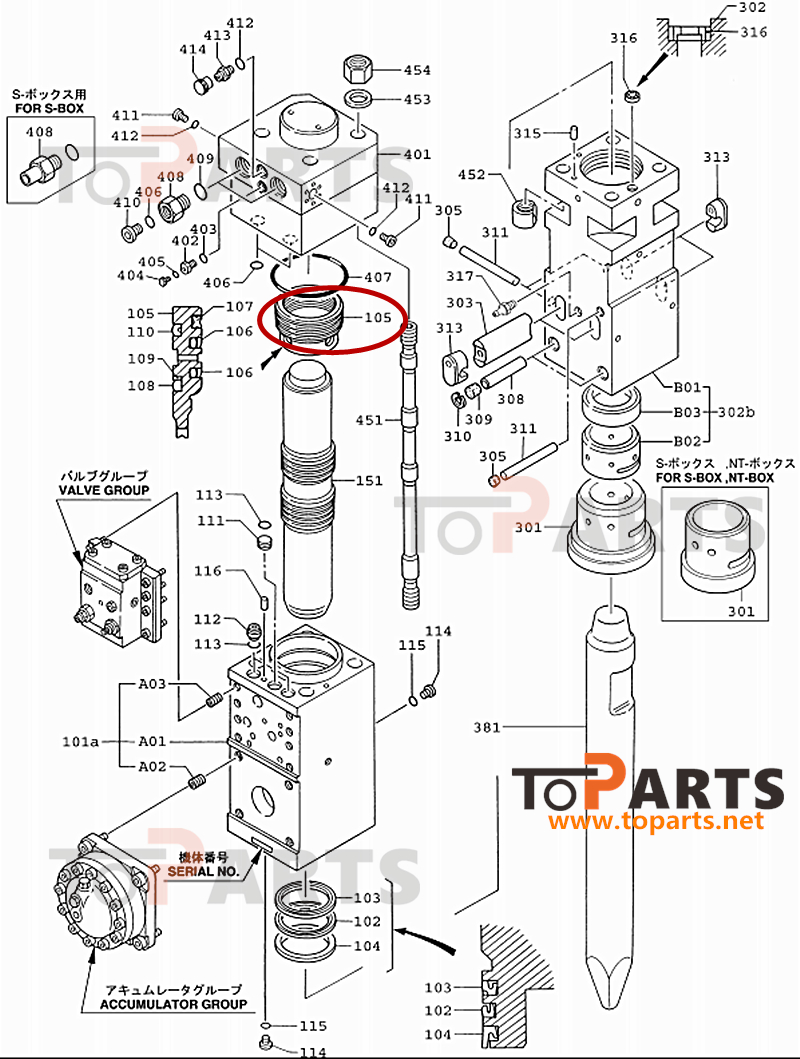

Parts list
|
ITEM |
PART NO. |
PART NAME |
Q’TY |
|
101a |
F22-10101 |
CYLINDER |
1 |
|
A01 |
* |
*CYLINDER |
1 |
|
A02 |
HB15G-10104 |
*INSERT,HELI-SERT |
4 |
|
A03 |
HB20G-10105 |
*INSERT,HELI-SERT |
8 |
|
102 |
HB20G-10207 |
PACKING,U |
1 |
|
103 |
F22-10108 |
RING,BUFFER |
1 |
|
104 |
HB20G-10210 |
SEAL,DUST |
1 |
|
105 |
F22-10111 |
RETAINER,SEAL |
1 |
|
106 |
HB20G-10212 |
PACKING,SLIDE |
2 |
|
107 |
F22-10214 |
RING,SEAL |
1 |
|
108 |
F22-10116 |
D-RING |
1 |
|
109 |
262032-00160 |
RING,BACK-UP |
1 |
|
110 |
F22-10216 |
RING,DELTA |
1 |
|
111 |
HB20G-10120 |
PLUG |
1 |
|
112 |
HB20G-10121 |
BUSH |
2 |
|
113 |
160011-00029 |
O-RING |
3 |
|
114 |
084891-02000 |
PLUG,GPF |
2 |
|
115 |
160011-00011 |
O-RING |
2 |
|
116 |
F22-10125 |
PIN,KNOCK |
1 |
|
151 |
F22-11101 |
PISTON |
1 |
|
301 |
F22-20301 |
COVER,FRONT |
1 |
|
301-1 |
F22-20401 |
COVER,FRONT |
1 |
|
301 |
F22-20501 |
COVER,FRONT |
1 |
|
302b |
F22-20202 |
HEAD,FRONT |
1 |
|
B01 |
* |
*HEAD,FRONT |
1 |
|
B02 |
F22-20904 |
*BUSH,THRUST |
1 |
|
B03 |
F22-20205 |
*RING,THRUST |
1 |
|
303 |
HB20G-20206 |
PIN,ROD |
2 |
|
305 |
HB20G-20108 |
PLUG,RUBBER |
3 |
|
308 |
001400-20106 |
PIN,FRONT HEAD |
2 |
|
309 |
001400-20108 |
PLUG,RUBBER |
2 |
|
310 |
264020-00026 |
RING,SNAP |
2 |
|
311 |
F22-20207 |
PIN,STOP |
3 |
|
313 |
HB20G-20212 |
PLUG,DUST |
4 |
|
315 |
F22-10125 |
PIN,KNOCK |
1 |
|
316 |
F22-20121 |
VALVE,CHECK |
1 |
|
317 |
001100-20123 |
NIPPLE,GREASE |
1 |
|
381 |
F22-25216 |
ROD,BALL POINT |
1 |
|
381 |
F22-25221 |
ROD,FLAT |
1 |
|
381 |
F22-25223 |
POINT,MOIL |
1 |
|
381 |
F22-25224 |
POINT,WEDGE |
1 |
|
401 |
F22-30201 |
HEAD,BACK |
1 |
|
402 |
HB15G-30103 |
VALVE,CHARGING |
1 |
|
403 |
160011-00018 |
O-RING |
1 |
|
404 |
HB20G-30109 |
PLUG |
1 |
|
405 |
160011-00006 |
O-RING |
1 |
|
406 |
160011-00029 |
O-RING |
4 |
|
407 |
160021-00190 |
O-RING |
1 |
|
408 |
F22-30111 |
CONNECTOR |
2 |
|
408 |
F22-30211 |
CONNECTOR |
2 |
|
409 |
160011-00038 |
O-RING |
2 |
|
410 |
084891-10000 |
PLUG,GPF |
2 |
|
411 |
084891-06000 |
PLUG,GPF |
2 |
|
412 |
160011-00024 |
O-RING |
3 |
|
413 |
084869-06000 |
CONNECTOR,MALE(WITH FILTER) |
1 |
|
414 |
F22-30113 |
CAP |
1 |
|
451 |
HB20G-36311 |
BOLT,THROUGH |
4 |
|
452 |
HB20G-36302 |
NUT |
4 |
|
453 |
HB20G-36305 |
WASHER |
4 |
|
454 |
HB20G-36306 |
NUT,HEXAGON |
4 |
|
152 |
F22-11901 |
PISTON |
1 |
|
301 |
F22-20101 |
COVER,FRONT |
1 |
|
302 |
F22-20201 |
COVER,FRONT |
1 |
|
303a |
F22-20911 |
COVER,FRONT |
1 |
|
A01 |
F22-20912 |
*COVER,FRONT |
1 |
|
A02 |
F22-20913 |
*BUSH,THRUST |
1 |
|
A03 |
F22-22104 |
*RING |
1 |
|
304 |
F22-20901 |
COVER,FRONT |
1 |
|
305 |
F22-20906 |
PIN,LONG ROD |
2 |

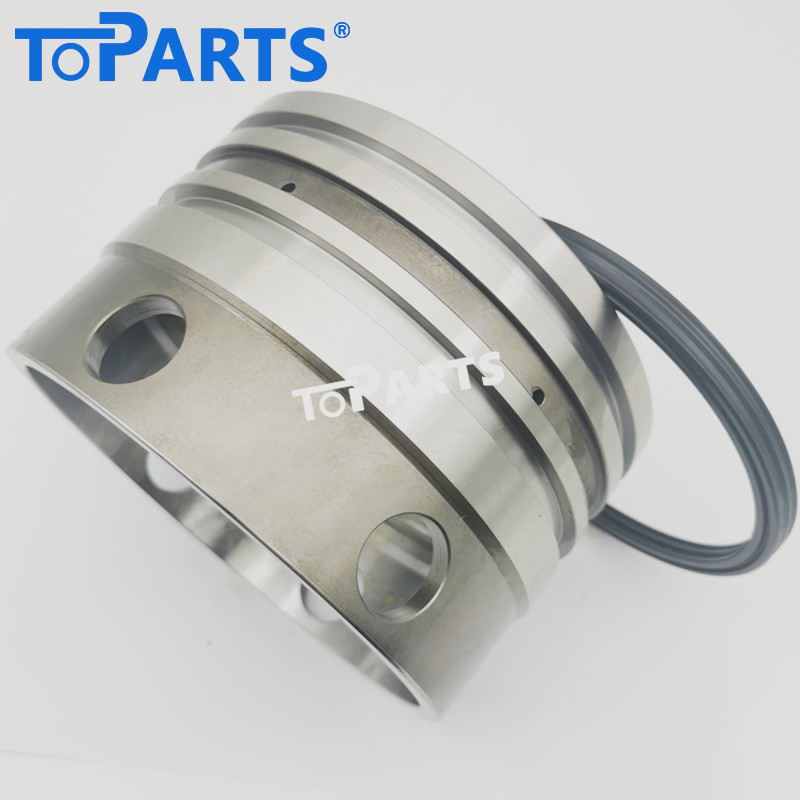

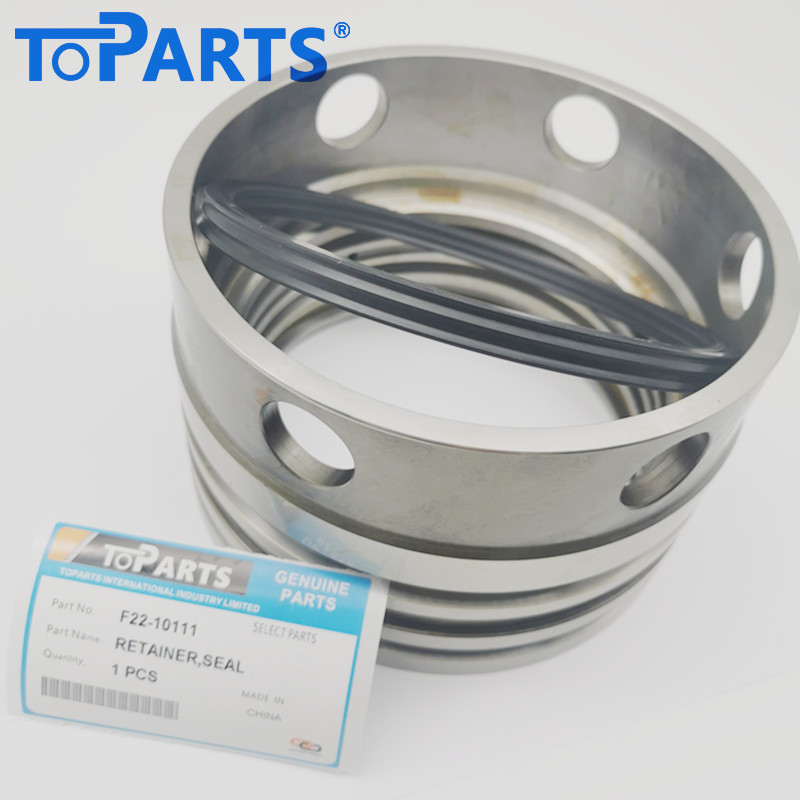

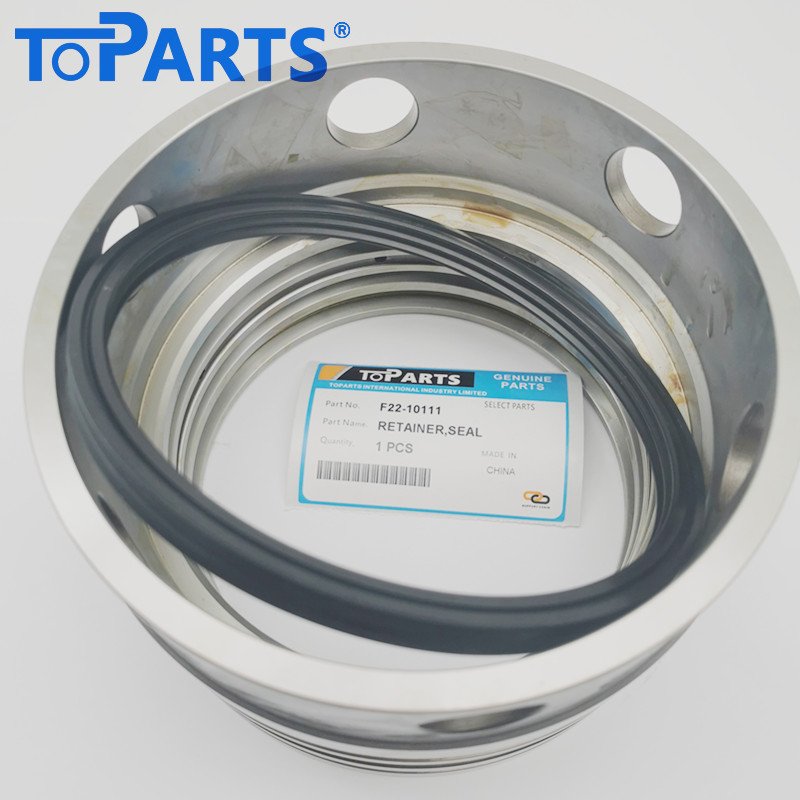

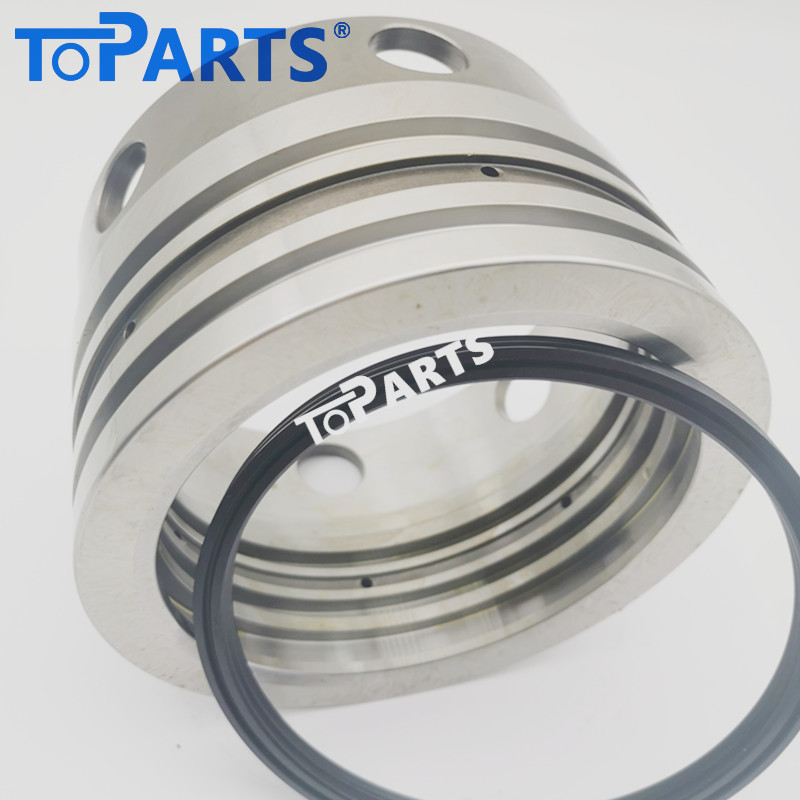

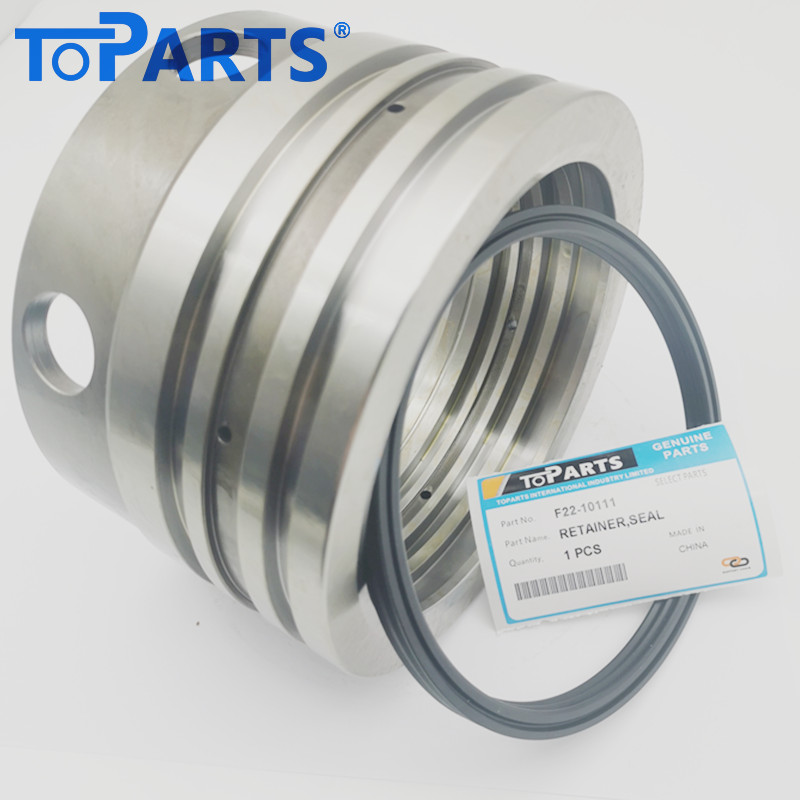

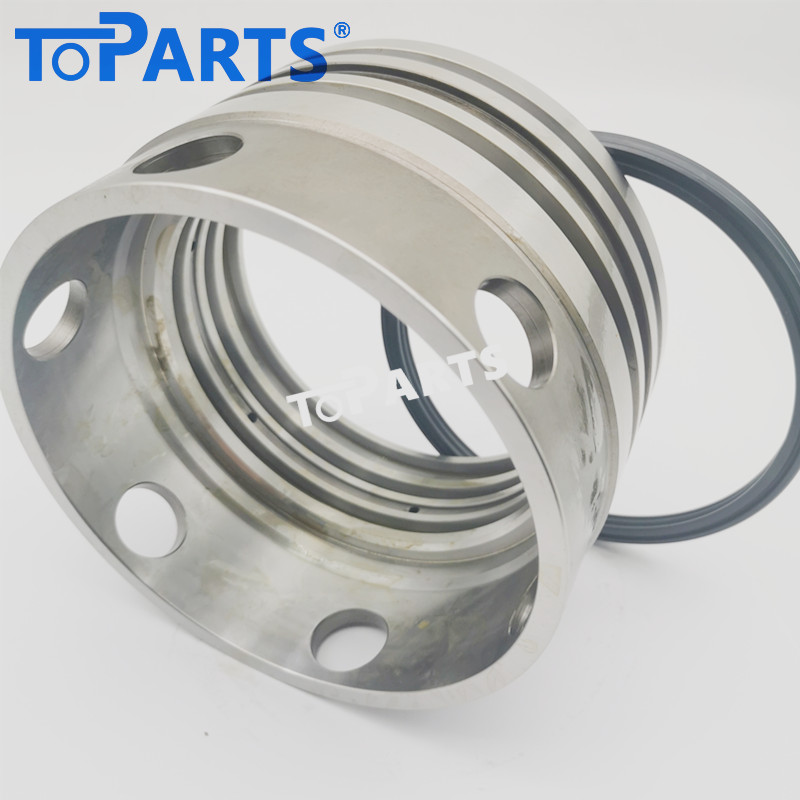

Toparts F2210111 Hydraulic Breaker Retainer Seal for Furukawa F22 Hammer
Optimize the striking power and hydraulic reliability of your equipment with the Toparts F2210111 Hydraulic Breaker Retainer Seal. Specifically engineered as a high-performance Piston Ring for the Furukawa F22 Hydraulic Hammer, this component is critical for maintaining the pressure integrity and smooth reciprocating motion of the breaker’s internal piston.
Precision Engineering for Furukawa F22 Heavy-Duty Performance
The Furukawa F22 is a legendary mid-to-large class breaker known for its durability and high impact energy. To maintain this performance, the internal sealing system—particularly the F2210111 Retainer Seal—must withstand extreme high-frequency vibrations and intense hydraulic pressure. Toparts has developed this seal to provide a perfect aftermarket fit that matches or exceeds OEM standards.
Key Features and Benefits:
Direct OEM Replacement: Fully compatible with Furukawa part number F2210111 (or F22-10111), ensuring a precision fit within the piston assembly without the need for modifications.
High-Grade Material Composition: Manufactured from advanced Polyurethane (PU) and specialized high-tensile elastomers. These materials offer exceptional resistance to the heat and friction generated during thousands of blows per minute.
Superior Pressure Retention: Acting as a vital piston ring, it prevents internal hydraulic fluid bypass. This ensures that the maximum amount of hydraulic energy is directed into the piston stroke, maintaining the hammer's full breaking force.
Wear and Tear Resistance: The F2210111 is designed to resist the abrasive effects of hydraulic oil additives and contaminants, significantly extending the life of the piston and the cylinder bore.
Reduced Vibration Impact: Engineered to provide a stable "buffer" effect, helping to align the piston and reduce lateral wear caused by the intense vibrations of demolition work.
Product Specifications:
Feature:Details
Part Number:F2210111 / F22-10111
Component Type:Retainer Seal / Piston Seal Ring
Compatible Model:Furukawa F22 Hydraulic Hammer
Material Grade:Premium High-Performance PU / PTFE
Application:Internal Piston Sealing and Pressure Regulation
Manufacturer:Toparts
Why Choose Toparts?
Toparts is a leading manufacturer and supplier specializing in high-end sealing solutions for the global demolition and construction industry. Our Furukawa F22 series components are trusted by operators worldwide to minimize downtime and maximize productivity in quarrying, mining, and reinforced concrete demolition.
Would you like me to provide a quote for the complete F22 Seal Kit or check the availability of the matching F22 Diaphragm?
