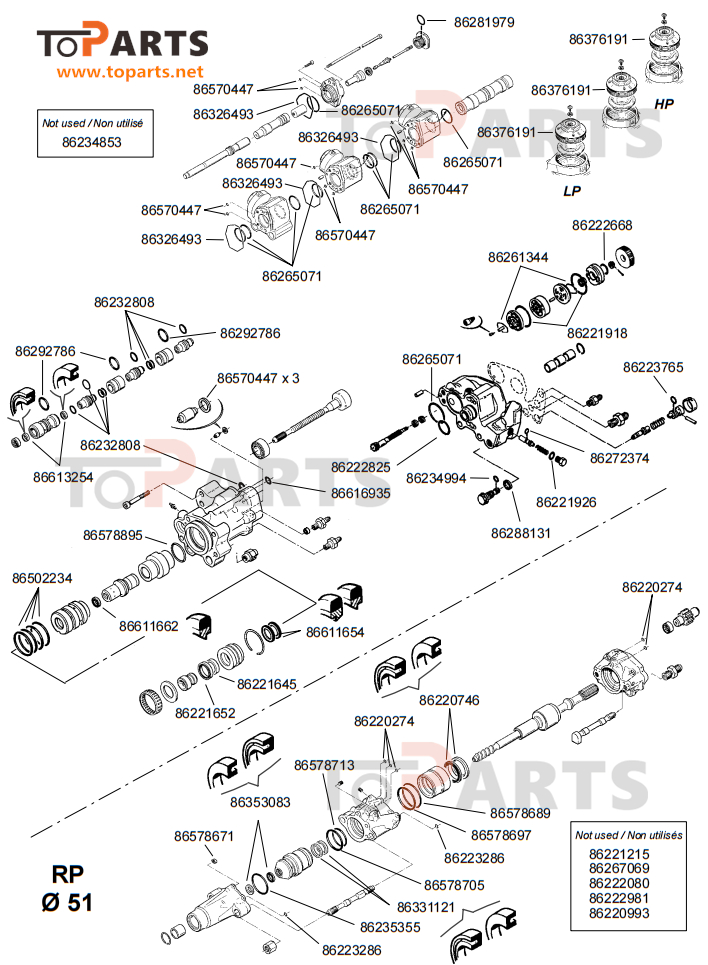

Parts list
|
NO. |
Part Number |
quantity |
Product Name |
|
1 |
86374030 |
1 |
Body |
|
2 |
86385135 |
1 |
Body |
|
3 |
86385119 |
1 |
Body including |
|
4 |
86264678 |
1 |
Helicoil thread UNF 3/4” |
|
5 |
86374055 |
3 |
Cover |
|
6 |
86376191 |
3 |
O’ring |
|
7 |
86634003 |
3 |
Diaphragm kit |
|
8 |
86241403 |
3 |
BS ring |
|
9 |
86265048 |
3 |
Inflating screw |
|
10 |
86223419 |
2 |
Pin |
|
11 |
86265071 |
8 |
O’ring |
|
12 |
86326493 |
3 |
O’ring |
|
13 |
86570447 |
10 |
Tight seal |
|
14 |
86221413 |
4 |
UNF 3/4”, socket head screw |
|
15 |
86223971 |
1 |
Cylinder |
|
16 |
86223534 |
1 |
Distributor |
|
17 |
86417441 |
1 |
Thrust piston Cyl. E |
|
18 |
86578580 |
1 |
Strike piston |
|
19 |
86324738 |
1 |
Cover |
|
20 |
86265071 |
1 |
O’ring |
|
21 |
86326493 |
1 |
O’ring |
|
22 |
86250867 |
1 |
UNF 3/4”, socket head screw |
|
23 |
86333267 |
1 |
Plug |
|
24 |
86281979 |
1 |
O’ring |
|
25 |
86223914 |
1 |
Cover |
|
26 |
86220944 |
1 |
Valve |
|
27 |
86417425 |
1 |
Push rod |
|
28 |
86417433 |
1 |
Lining |
|
29 |
86475746 |
1 |
Motor body including |
|
30 |
86221561 |
3 |
Guiding ring |
|
31 |
86223997 |
1 |
Snap ring |
|
32 |
86264678 |
2 |
Helicoil thread UNF 3/4” |
|
33 |
86223476 |
1 |
Spring |
|
34 |
86220811 |
2 |
Needle bearing |
|
35 |
86222825 |
1 |
O’ring |
|
36 |
86265071 |
1 |
O’ring |
|
37 |
86221918 |
2 |
O’ring |
|
38 |
86220209 |
1 |
Shaft |
|
39 |
86344199 |
2 |
Distribution plate |
|
40 |
86261344 |
2 |
O’ring |
|
41 |
86318516 |
2 |
Pin |
|
42 |
86223559 |
1 |
Ball bearing |
|
43 |
86344116 |
1 |
Bearing holder plate |
|
44 |
86313046 |
1 |
Nut |
|
45 |
86302841 |
1 |
Pin |
|
46 |
86222668 |
1 |
O’ring |
|
47 |
86313053 |
1 |
Cover |
|
48 |
86585841 |
1 |
Cartridge (type 075) |
|
49 |
86366259 |
1 |
Slider |
|
50 |
86366242 |
1 |
Lining |
|
51 |
86366283 |
1 |
Spring |
|
52 |
86234994 |
1 |
O’ring |
|
53 |
86234853 |
1 |
O’ring |
|
54 |
86288131 |
1 |
BS ring |
|
55 |
86312196 |
1 |
Adjusting shim |
|
56 |
86475001 |
1 |
Thrust housing including |
|
57 |
86264678 |
4 |
Helicoil thread UNF 3/4” |
|
58 |
86655354 |
1 |
Oiler |
|
59 |
86223419 |
1 |
Pin |
|
60 |
95848107 |
2 |
UNF 3/4”, socket head screw |
|
61 |
86322518 |
3 |
Valve |
|
62 |
86570447 |
3 |
Tight seal |
|
63 |
86616935 |
1 |
Face sea |
|
64 |
86502234 |
1 |
O’ring |
|
65 |
86578895 |
1 |
O’ring |
|
66 |
86611647 |
1 |
Front lining |
|
67 |
86611621 |
1 |
Rear lining |
|
68 |
86611654 |
1 |
Composite seal |
|
69 |
86220258 |
1 |
Snap ring |
|
70 |
86611639 |
1 |
Hydraulic stop piston |
|
71 |
86611662 |
1 |
Seal |
|
72 |
86345022 |
1 |
Guide |
|
73 |
86221652 |
1 |
Centering part |
|
74 |
86221645 |
1 |
Centering part |
|
75 |
86223492 |
1 |
Shank stop |
|
76 |
86220241 |
1 |
Ring |
|
77 |
86221603 |
1 |
Needle bearing |
|
78 |
86313087 |
1 |
Shaft |
|
79 |
86484755 |
1 |
Ball bearing |
|
80 |
86223435 |
3 |
Tight ring |
|
81 |
86313095 |
2 |
Tight ring |
|
82 |
86313103 |
1 |
Tight ring |
|
83 |
86232808 |
9 |
O’ring |
|
84 |
86292786 |
3 |
O’ring |
|
85 |
86613254 |
2 |
Seal |
|
86 |
86223021 |
1 |
Needle bearing |
|
87 |
86501061 |
1 |
Restrictor |
|
88 |
86373115 |
2 |
( Helicoil thread UNF 1”1/8 |
|
89 |
86220274 |
5 |
O’ring |
|
90 |
86223443 |
4 |
UNF 3/4”, hexa. screw |
|
91 |
86222882 |
|
|
|
92 |
86511466 |
1 |
Gear including : |
|
93 |
86511441 |
1 |
Splined nut |
|
94 |
86220779 |
|
|
|
95 |
86221116 |
1 |
Ring |
|
96 |
86221595 |
1 |
Needle bearing |
|
97 |
86221678 |
1 |
Ring |
|
98 |
86313129 |
1 |
Gear |
|
99 |
86223021 |
1 |
Needle bearing |
|
100 |
86607942 |
1 |
Housing |
|
101 |
86223286 |
2 |
Tight seal |
|
102 |
86578689 |
1 |
O’ring |
|
103 |
86578697 |
1 |
O’ring |
|
104 |
86578705 |
1 |
O’ring |
|
105 |
86578713 |
1 |
O’ring |
|
106 |
86339272 |
1 |
Rear lining |
|
107 |
86220746 |
2 |
Seal |
|
108 |
86353356 |
1 |
Front lining |
|
109 |
86331121 |
2 |
Lip seal |
|
110 |
86353083 |
2 |
Lip seal |
|
111 |
86223716 |
2 |
Gudgeon |
|
112 |
86271558 |
2 |
Nut |
|
113 |
86352416 |
1 |
|
|
114 |
86353323 |
1 |
Front guide including : |
|
115 |
86511482 |
1 |
( Guiding ring |
|
116 |
86235538 |
1 |
( Snap ring |
|
117 |
86235355 |
1 |
O’ring |
|
118 |
86578671 |
1 |
seal |
|
119 |
86621596 |
1 |
Shank male Ø 51, T51 |
Our advantage: original system data to ensure accurate size

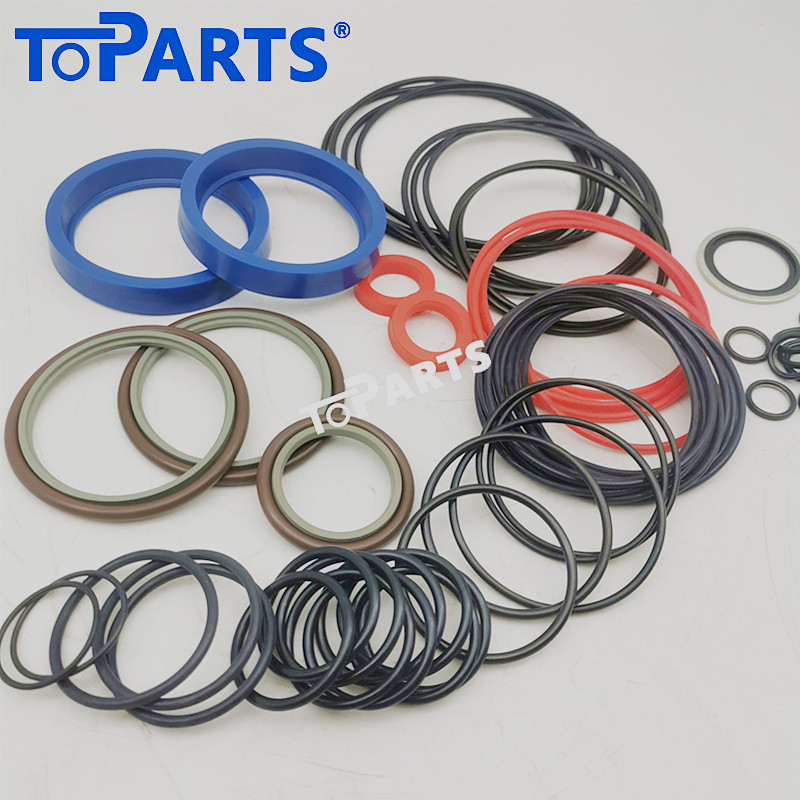

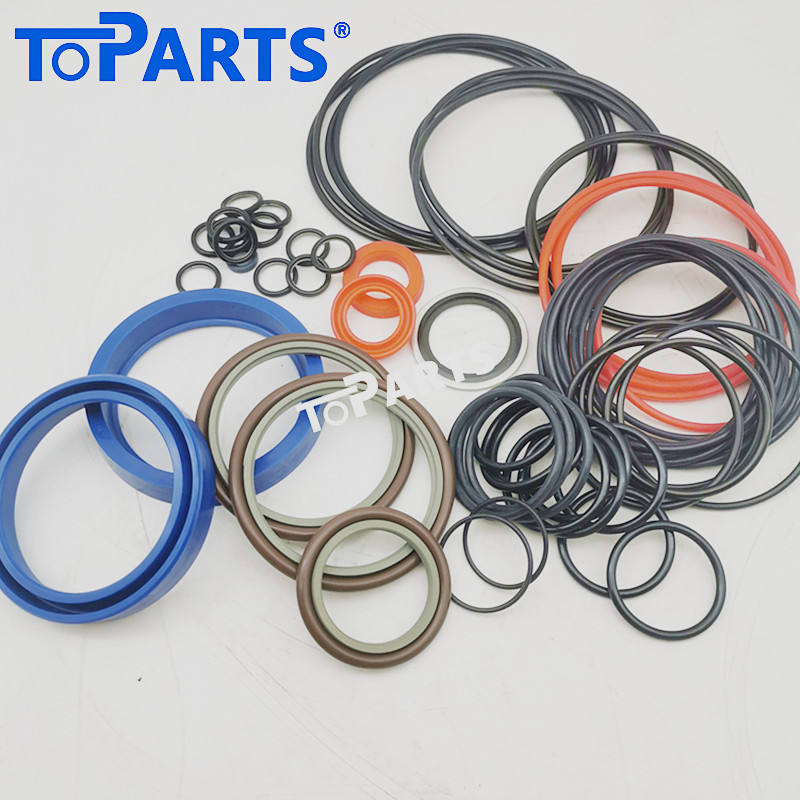

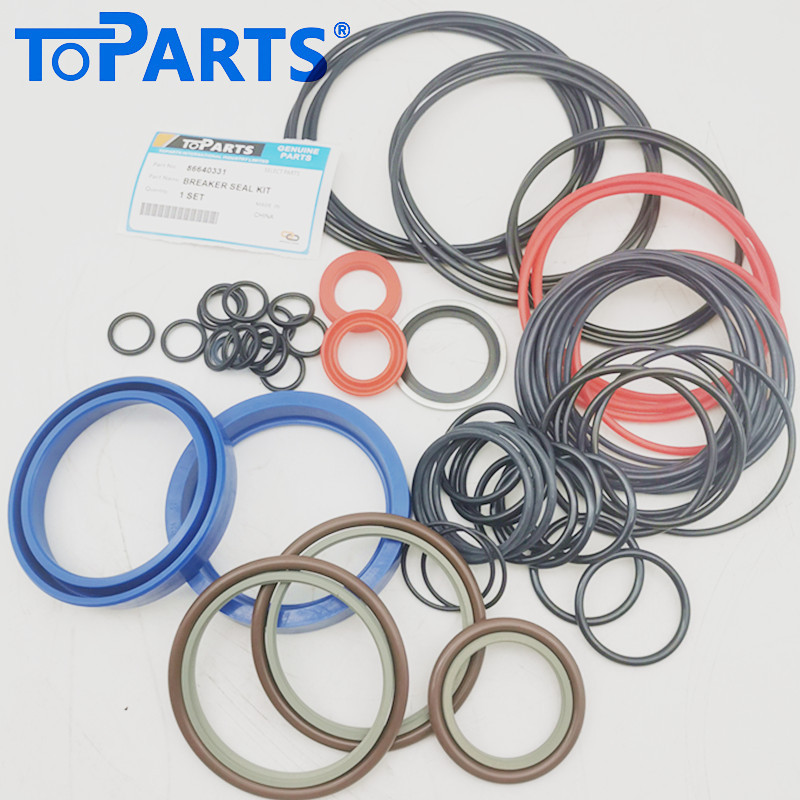

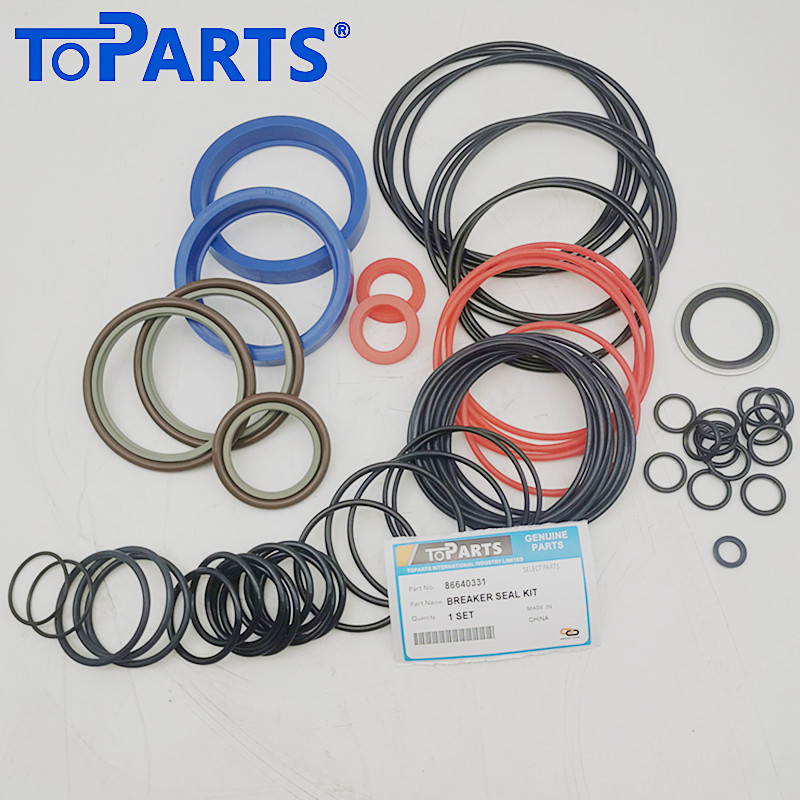

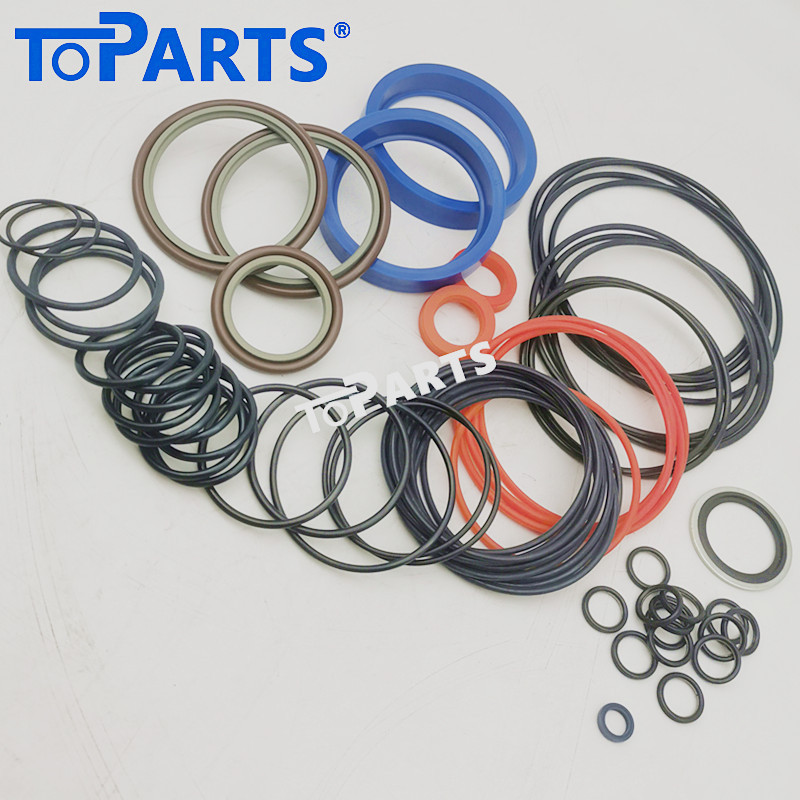

Keep your Montabert hydraulic rock drills operating at their best with Toparts Hydraulic Drifter Seal Kits. Designed specifically for Montabert HC109 and HC155 models, our high-quality kits, with part numbers 86640331 and 86647435, provide all the essential seals needed to maintain hydraulic integrity, prevent leaks, and reduce wear under the most demanding conditions.
