English

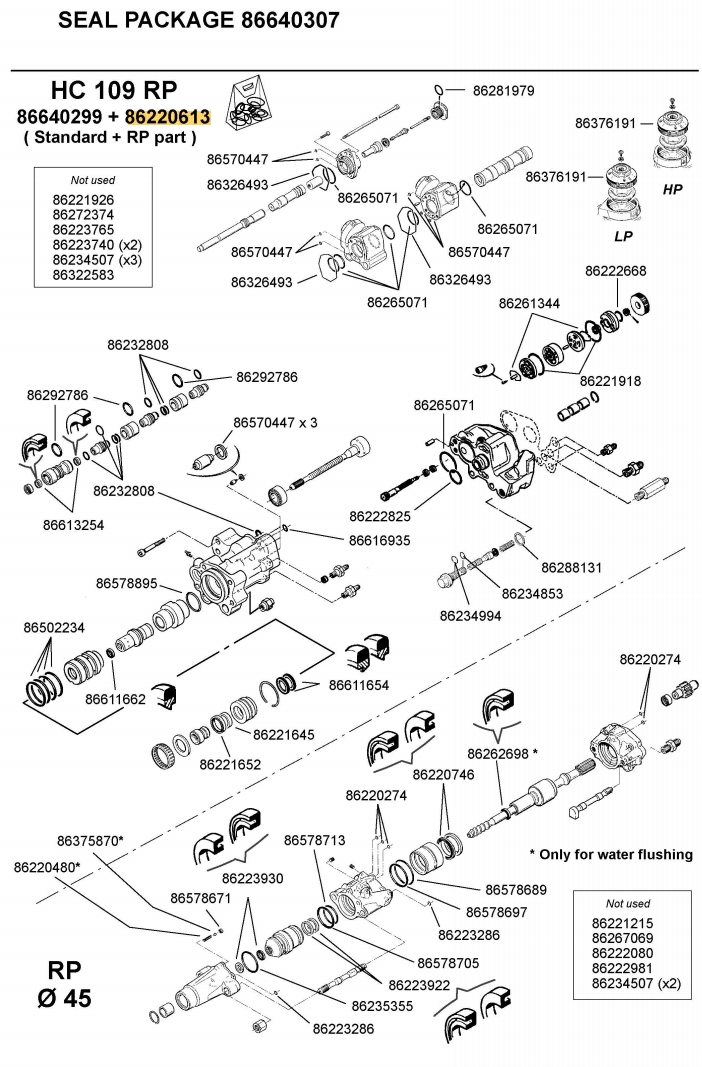

Parts list
|
Part Number |
Quantity |
Product Name |
|
86374030 |
1 |
LP Body |
|
86385119 |
1 |
HP Body including: |
|
86264678 |
1 |
Helicoil thread UNF 3/4” |
|
86374055 |
2 |
Cover |
|
86376191 |
2 |
O’ring |
|
86634003 |
2 |
Diaphragm |
|
86241403 |
2 |
BS ring |
|
86265048 |
2 |
Inflating screw |
|
86265071 |
5 |
O’ring |
|
86326493 |
2 |
O’ring |
|
86570447 |
7 |
Tight seal |
|
86313228 |
4 |
UNF 3/4”, socket head screw |
|
86323672 |
1 |
Cylinder |
|
86333697 |
1 |
Distributor |
|
86333713 |
1 |
Thrust piston Cyl. E |
|
86578580 |
1 |
Strike piston |
|
86324738 |
1 |
Cover |
|
86265071 |
1 |
O’ring |
|
86326493 |
1 |
O’ring |
|
86250867 |
1 |
UNF 3/4”, socket head screw |
|
86333267 |
1 |
Plug |
|
86281979 |
1 |
O’ring |
|
86223914 |
1 |
Distribution cover |
|
86220944 |
1 |
Valve |
|
86220951 |
1 |
Push rod |
|
86220969 |
1 |
Lining |
|
86221561 |
3 |
Guiding ring |
|
86223997 |
1 |
Snap ring |
|
86264678 |
2 |
Helicoil thread UNF 3/4” |
|
86220811 |
2 |
Needle bearing |
|
86222825 |
|
|
|
86265071 |
1 |
O’ring |
|
86221918 |
2 |
O’ring |
|
86220209 |
1 |
Shaft |
|
86344199 |
2 |
Distribution plate |
|
86261344 |
2 |
O’ring |
|
86318516 |
2 |
Pin |
|
86223559 |
1 |
Ball bearing |
|
86344116 |
1 |
Bearing holder plate |
|
86313046 |
1 |
Nut |
|
86302841 |
1 |
Pin |
|
86222668 |
1 |
O’ring |
|
86313053 |
1 |
Cover |
|
86638335 |
1 |
Cartridge (type 055) |
|
86653581 |
1 |
Slider |
|
86366242 |
1 |
Lining |
|
86366283 |
1 |
Spring |
|
86234994 |
1 |
O’ring |
|
86234853 |
1 |
O’ring |
|
86288131 |
|
|
|
86312196 |
|
Adjusting shim |
|
86475001 |
1 |
Thrust housing including: |
|
86264678 |
4 |
Helicoil thread UNF 3/4” |
|
86655354 |
1 |
Oiler |
|
86223419 |
1 |
Pin |
|
95848107 |
2 |
UNF 3/4”, socket head screw |
|
86570447 |
3 |
Tight seal |
|
86616935 |
1 |
Face seal |
|
86502234 |
4 |
O’ring |
|
86611647 |
|
|
|
86611621 |
1 |
Rear lining |
|
86611639 |
1 |
Hydraulic stop piston |
|
86611662 |
1 |
Seal |
|
86345022 |
1 |
Guide |
|
86221652 |
1 |
Centering part |
|
86221645 |
1 |
Centering part |
|
86223492 |
1 |
Shank stop |
|
86220241 |
1 |
Ring |
|
86221603 |
1 |
Needle bearing |
|
86313087 |
1 |
Shaft |
|
86484755 |
1 |
Ball bearing |
|
86223435 |
3 |
Tight ring |
|
86313095 |
|
|
|
86313103 |
1 |
Tight ring |
|
86232808 |
|
|
|
86292786 |
3 |
O’ring |
|
86613254 |
2 |
Seal |
|
86223021 |
1 |
Needle bearing |
|
86313129 |
1 |
Gear drive |
|
86223021 |
1 |
Needle bearing |
|
86221116 |
|
|
|
86221595 |
1 |
Needle bearing |
|
86221678 |
1 |
|
|
86511458 |
1 |
Splined shank |
|
86220779 |
1 |
Snap ring |
|
86645967 |
|
|
|
86645959 |
|
|
|
86605219 |
1 |
Guiding ring |
|
86223997 |
1 |
Snap ring |
|
86313186 |
1 |
Packing |
|
86307162 |
|
|
|
86619350 |
1 |
Shank male Ø 38, T38 |

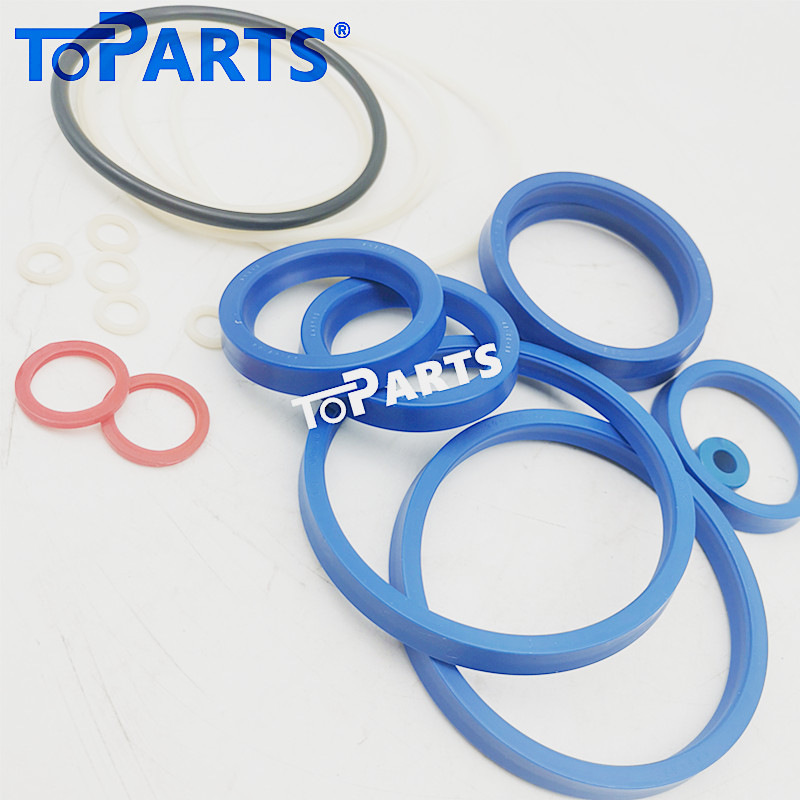

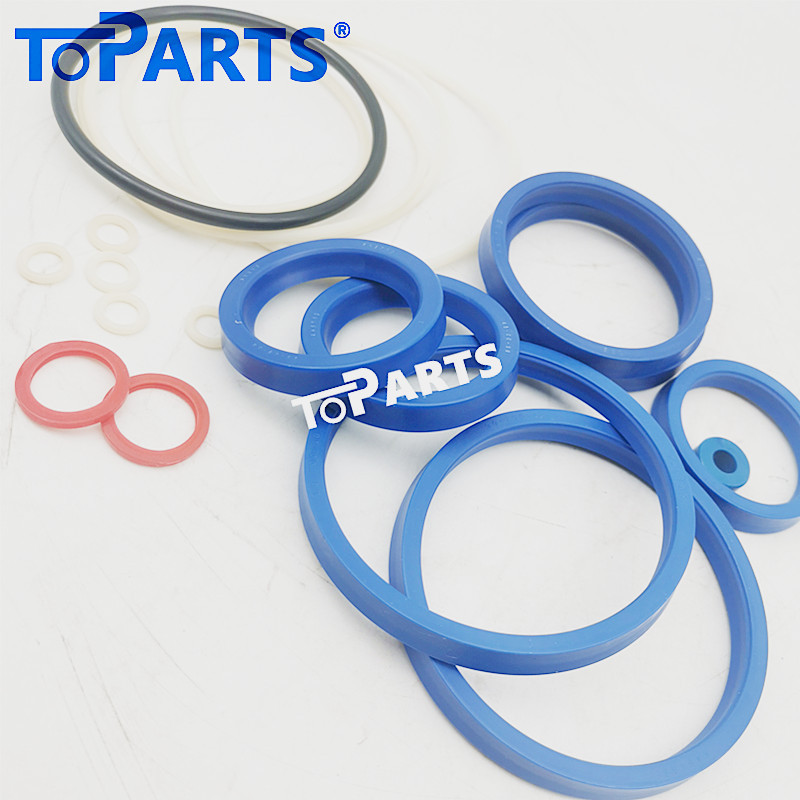

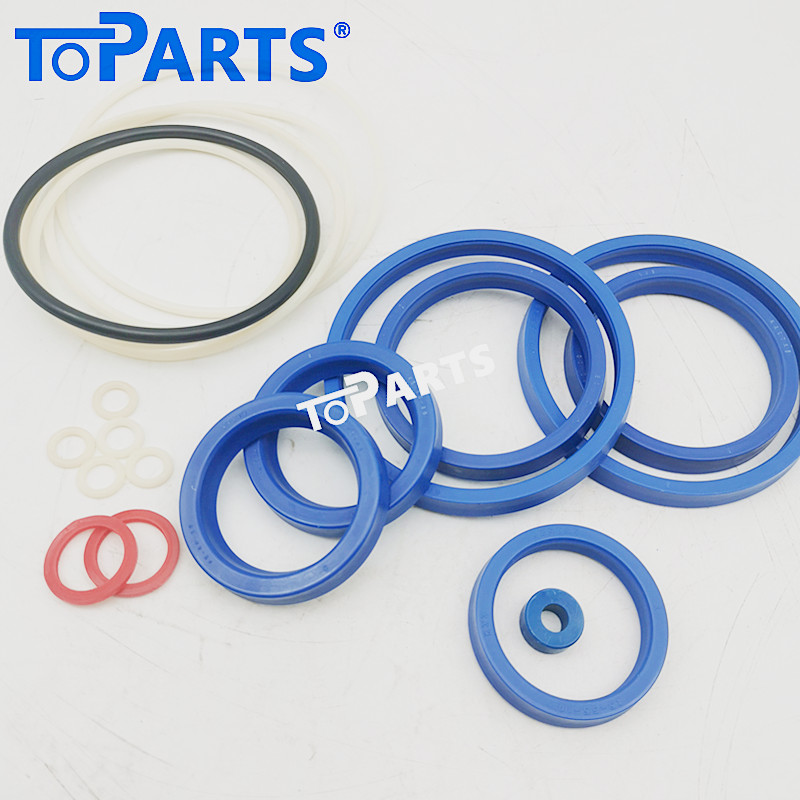

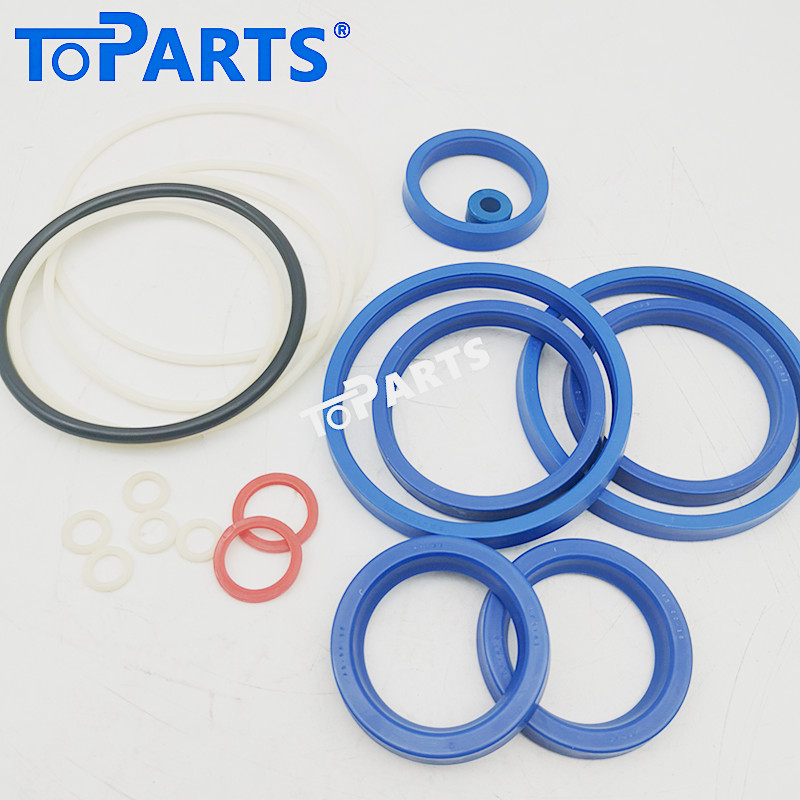

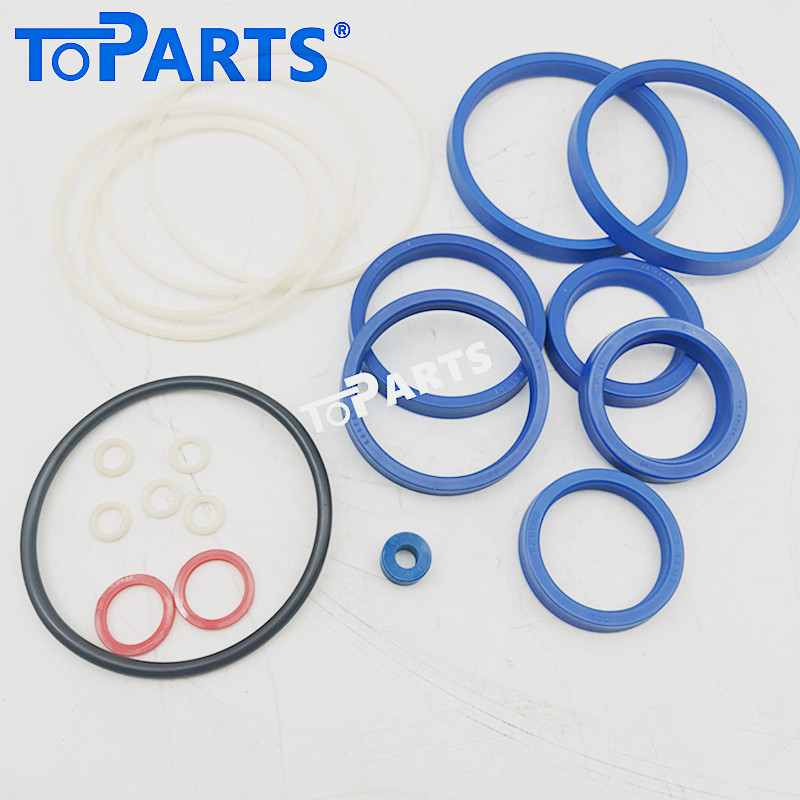

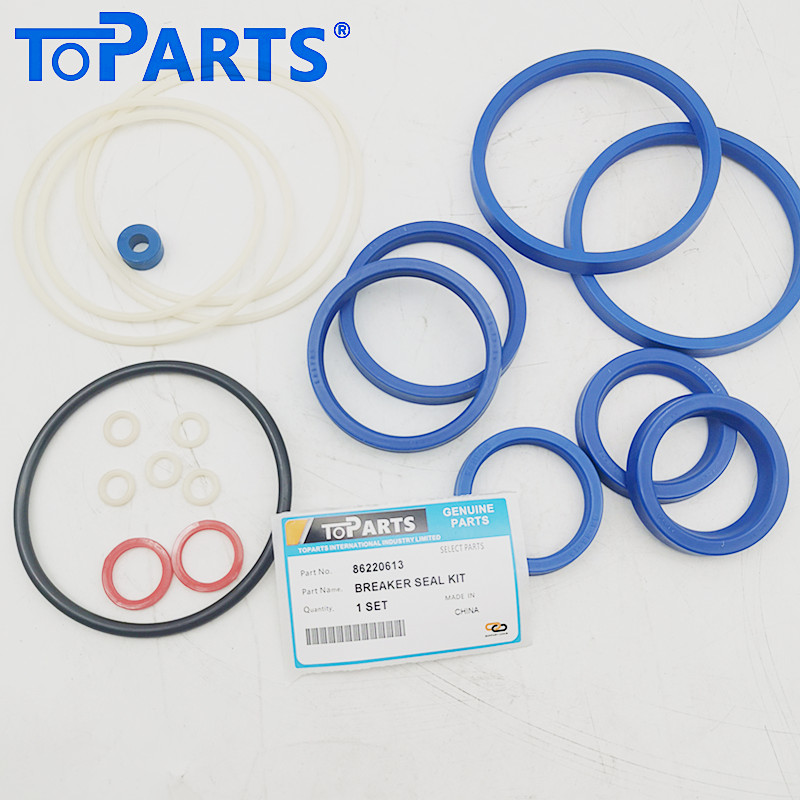

Toparts 86220613 Hydraulic Drifter Seal Kit for Montabert HC109
Achieve maximum drilling efficiency and minimize downtime with the Toparts 86220613 Hydraulic Drifter Seal Kit. This essential service and repair kit is specifically engineered for the high-performance Montabert HC109 Hydraulic Rock Drill, ensuring your machine operates with consistent power and reliability.
Engineered for Montabert HC109 Drifters
The Montabert HC109 drifter is a precision component subjected to intense percussion and extreme hydraulic pressures. The Toparts 86220613 seal kit is a direct aftermarket replacement, meticulously crafted to meet or exceed the rigorous standards of the original equipment, guaranteeing a perfect fit and dependable function.
Key Features and Benefits:
Direct OEM Replacement: This kit seamlessly replaces the original Montabert part number 86220613, ensuring full compatibility and simplifying the repair process for your HC109 rock drill.
Superior Material Quality: Manufactured using specialized, high-grade materials (including high-performance polyurethanes, FKM, and PTFE), our seals are built to withstand the operational extremes of rock drilling, including high pressure surges, heat, and vibration.
Restores Percussion Power: Worn seals cause internal fluid bypass, leading to a significant drop in percussion pressure and reduced drilling speed. Replacing them with the Toparts 86220613 kit restores the drifter's maximum impact energy and reliable penetration rates.
Extends Drifter Life: By maintaining proper internal sealing, the kit effectively prevents internal contamination and reduces friction, which protects the intricate mechanical components of your expensive HC109 unit.
Comprehensive Repair Solution: The kit contains all the necessary seals, O-rings, and specialized components required for a complete and effective hydraulic overhaul of the HC109 drifter.
Product Details:
Part Number: 86220613
Compatible Model: Montabert HC109 Hydraulic Rock Drill / Drifter
Application: Hydraulic Drifter Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don't let hydraulic leaks compromise your drilling productivity. Invest in the trusted quality and reliability of the Toparts 86220613 Hydraulic Drifter Seal Kit for your Montabert HC109.
