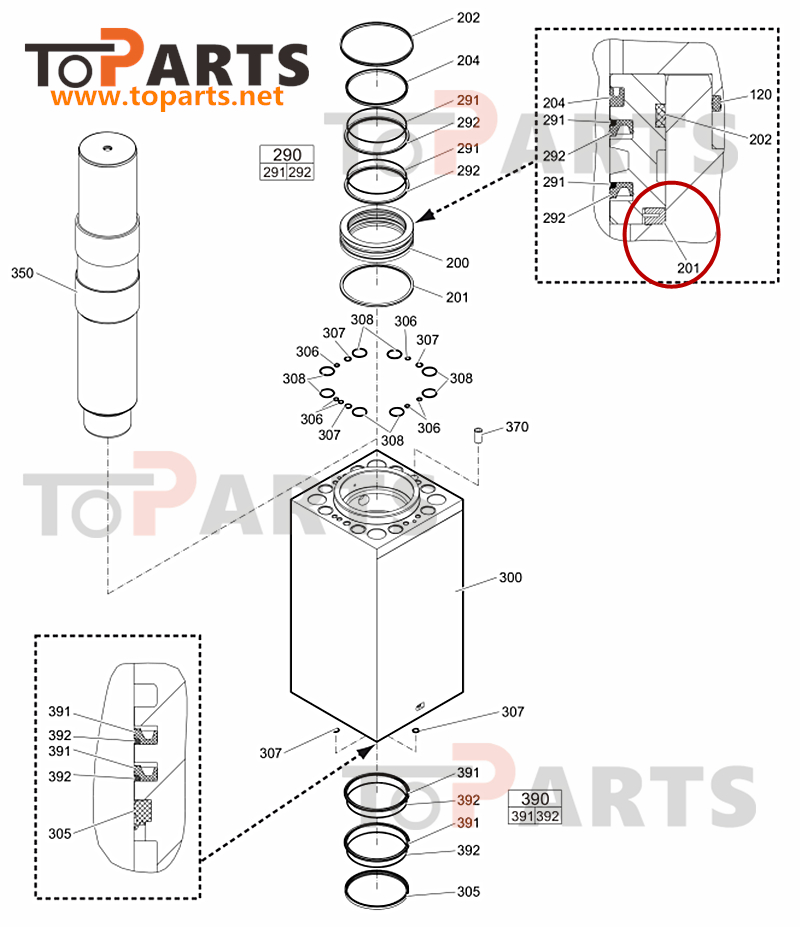

Parts list
|
Item |
Part No |
Name |
Qty |
|
200 |
3363105017 |
Seal bush |
1 |
|
201 |
3363105019 |
Ring |
1 |
|
202 |
3363103874 |
Seal |
1 |
|
204 |
3363103804 |
Seal |
1 |
|
290(291-292) |
3363103837 |
Seal kit |
2 |
|
291 |
|
Back-up ring |
1 |
|
292 |
|
Seal |
1 |
|
300 |
3363120176 |
Cylinder |
1 |
|
305 |
3363103805 |
Wiper |
1 |
|
306 |
3362267583 |
Stircomatic |
6 |
|
307 |
3362267585 |
Seal |
5 |
|
308 |
3362267589 |
Seal |
8 |
|
350 |
3363103828 |
Percussion piston |
1 |
|
370 |
3360921413 |
Lock pin |
1 |
|
390(391-392) |
3363103838 |
Seal kit |
2 |
|
391 |
|
Seal |
1 |
|
392 |
|
Back-up ring |
1 |

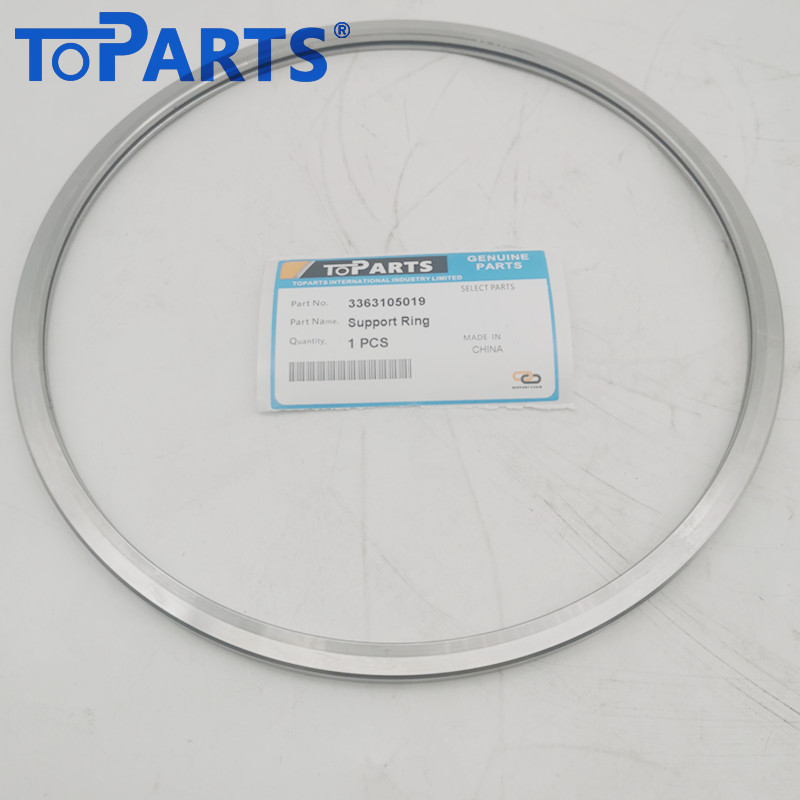

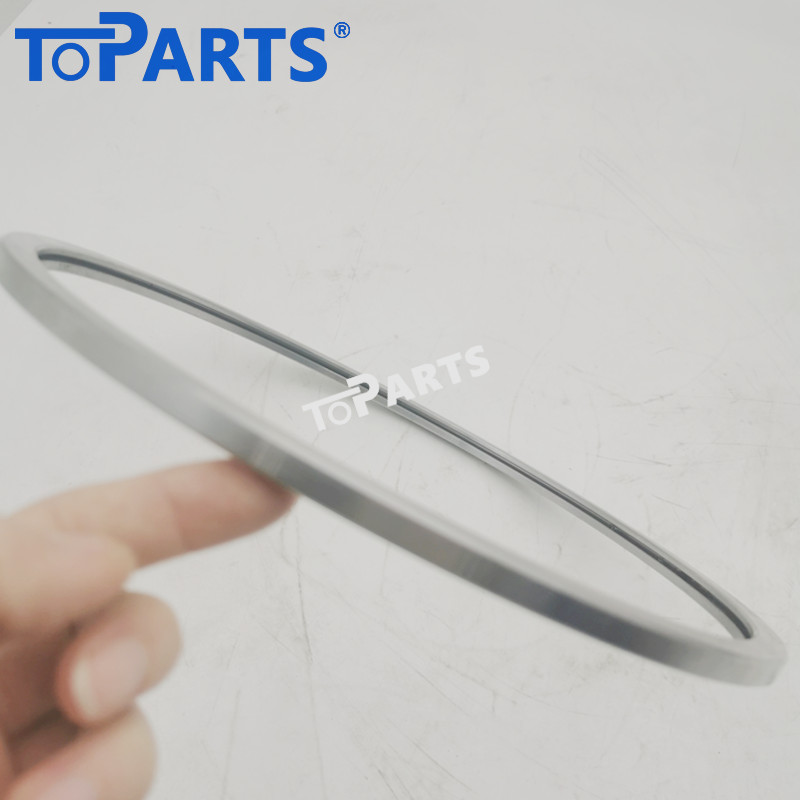

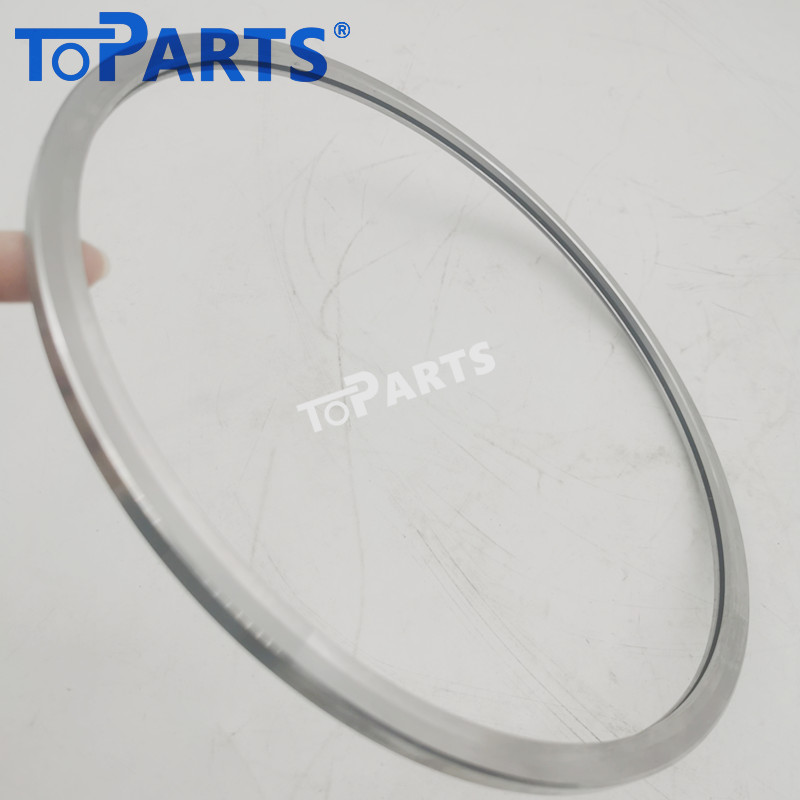

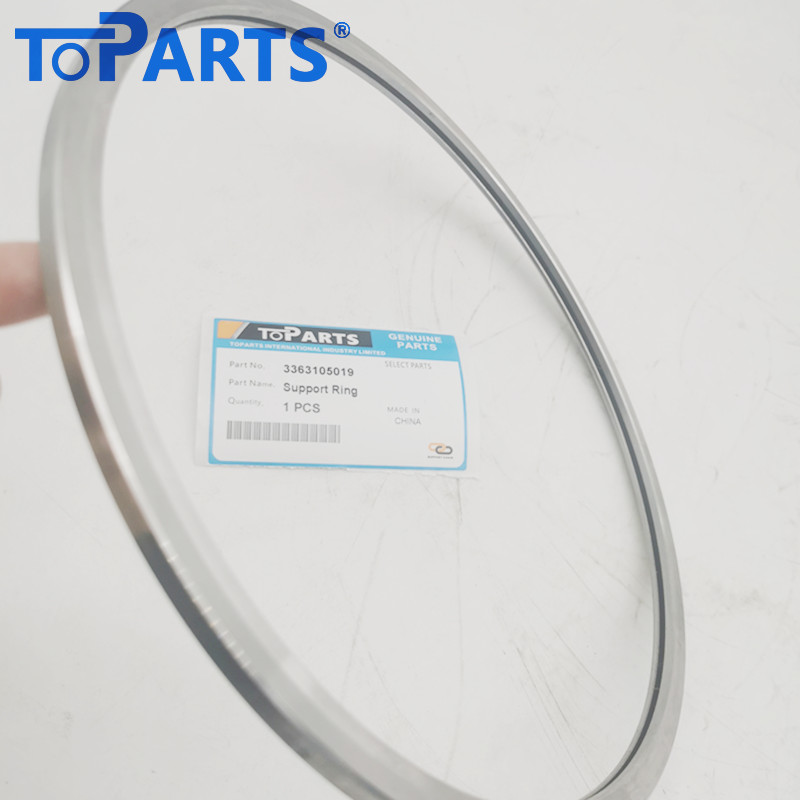

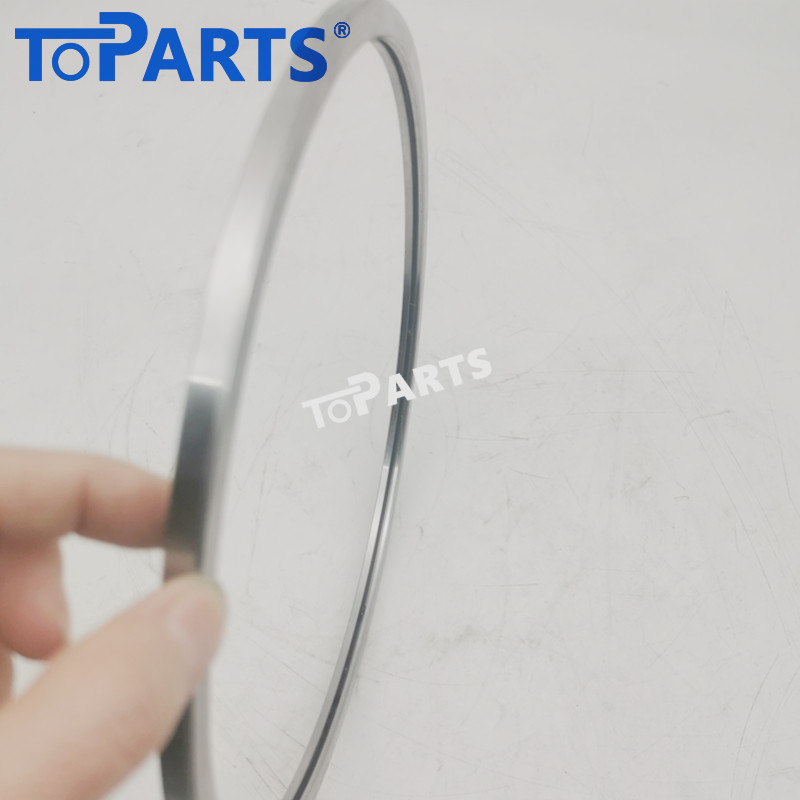

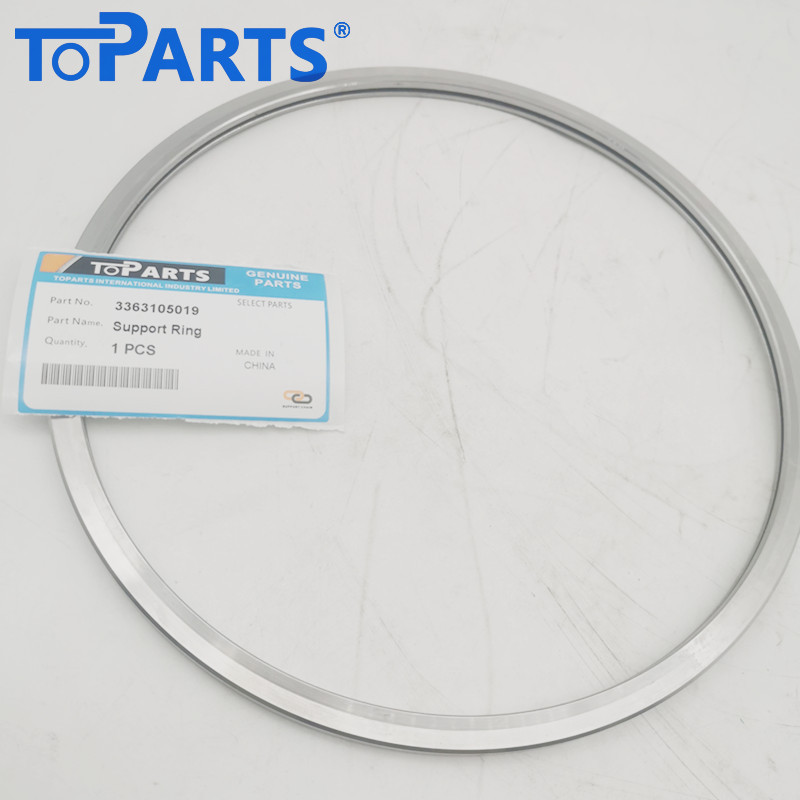

Toparts 3363105019 Hydraulic Breaker Seal Ring for Atlas Copco HB4700
Maintain the peak hitting power and hydraulic integrity of your heavy-duty demolition equipment with the Toparts 3363105019 Seal Ring. Specifically engineered for the Atlas Copco HB4700 Hydraulic Hammer, this premium sealing component is essential for preventing pressure loss and ensuring the long-term reliability of your breaker’s internal system.
Precision Engineering for the HB4700 Heavy Breaker
The Atlas Copco HB4700 is a massive, high-performance breaker designed for the toughest quarrying, mining, and primary demolition tasks. Because it operates under extreme hydraulic pressure and high-frequency vibration, the internal seal rings must be of the highest caliber. Toparts has developed the 3363105019 (often associated with the assembly reference 3363127170) to provide a perfect, leak-proof fit that matches the performance of the original equipment.
Key Features and Benefits:
Direct OEM Compatibility: Precisely manufactured to replace Atlas Copco OEM part number 3363105019, ensuring seamless integration into the HB4700 hydraulic circuit.
High-Performance Materials:Crafted from advanced, wear-resistant elastomers and high-tensile polymers designed to withstand the high temperatures and friction generated during continuous, heavy-duty breaking operations.
Optimal Pressure Retention:Engineered to maintain consistent hydraulic pressure within the hammer, preventing internal fluid bypass and ensuring that every blow delivers maximum impact energy.
Superior Durability:Resistant to aggressive hydraulic oils and additive packages, our seal rings are built to last longer in harsh environments, reducing the frequency of teardowns and maintenance.
Protection of Core Components:By maintaining a perfect seal, this ring prevents contamination and ensures smooth piston travel, protecting the expensive cylinder and piston from premature wear and scoring.
Product Specifications:
Feature:Details
Part Number:3363105019
Associated Ref:3363127170
Compatible Model:Atlas Copco / Epiroc HB4700
Component Type:Hydraulic Seal Ring / Step Seal / O-Ring
Application:Heavy-Duty Hydraulic Breaker Service & Repair
Manufacturer:Toparts
Don't let a minor seal failure lead to major downtime on your job site. Invest in the Toparts 3363105019 Hydraulic Breaker Seal Ring for a reliable, high-strength solution that keeps your Atlas Copco HB4700 running at maximum capacity.
Would you like me to check the availability of a complete overhaul seal kit or the matching chisel for your HB4700?
