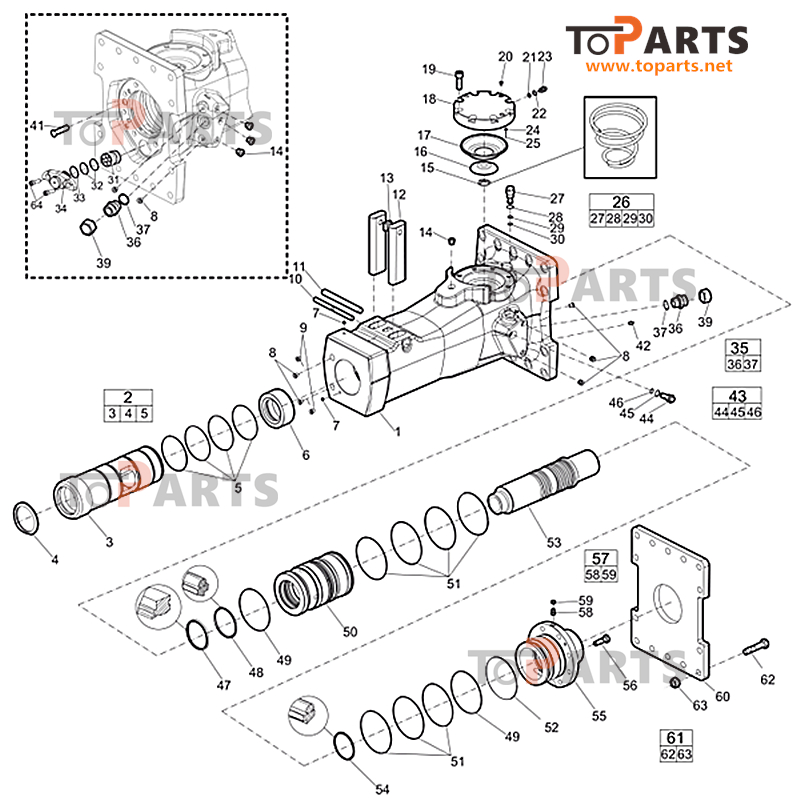

Parts list
|
NO. |
Part Number |
Product Name |
Quantity |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315302980 |
Bushing, complete |
1 |
|
3 |
- |
BUSHING |
1 |
|
4 |
3315303000 |
Scraper ring |
1 |
|
5 |
0663210823 |
O-ring, |
4 |
|
6 |
3315302800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, |
2 |
|
8 |
0686644207 |
PLUG |
7 |
|
9 |
3315395200 |
Water Nossle |
2 |
|
10 |
3315319100 |
Lock pin |
1 |
|
11 |
0108169129 |
Spring pin, option |
1 |
|
12 |
3315305900 |
Tool retainer |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371801 |
PLUG |
4 |
|
15 |
3315303500 |
COIL SPRING |
1 |
|
16 |
3315303201 |
Diaphragm support |
1 |
|
17 |
3315416300 |
Diaphragm |
1 |
|
18 |
3315303100 |
Diaphragm cover |
1 |
|
19 |
0211196544 |
Hexagon socket screw Screw with extra high fatigue strength. |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0663211400 |
O-RING |
1 |
|
25 |
0101414000 |
PIN |
1 |
|
26 |
3315365800 |
PRESS.REL.VALVE |
1 |
|
27 |
- |
Pressure relief valve |
1 |
|
28 |
0663212141 |
O-RING |
1 |
|
29 |
0663210421 |
O-RING |
1 |
|
30 |
0661200401 |
BACK-UP RING |
1 |
|
31 |
3315312100 |
Control valve |
1 |
|
32 |
0663990026 |
Seal ring, |
2 |
|
33 |
0663211491 |
O-ring, |
1 |
|
34 |
3315362820 |
Valve cover |
1 |
|
35 |
0580001476 |
PIPE COUPLING |
1 |
|
36 |
- |
NIPPLE |
1 |
|
37 |
0664000005 |
Sealing ring, . |
1 |
|
39 |
0686925030 |
Cap |
2 |
|
41 |
3315336700 |
PLUG |
1 |
|
42 |
0544215300 |
GREASE NIPPLE |
1 |
|
43 |
3315369655 |
Restrictor standard, complete |
1 |
|
44 |
-- |
Restrictor, standard, Ø7.7 mm, Ø0.3 in. |
1 |
|
45 |
0663210421 |
O-RING |
1 |
|
46 |
0663212141 |
O-RING |
1 |
|
47 |
0665909965 |
Wiper |
1 |
|
48 |
0665070134 |
Piston rod seal |
1 |
|
49 |
0663990027 |
Beanseal, |
2 |
|
50 |
3315302500 |
Liner |
1 |
|
51 |
0663211303 |
O-ring, |
7 |
|
52 |
0663211506 |
O-ring, |
1 |
|
53 |
3315302400 |
Piston |
1 |
|
54 |
0665070133 |
Piston rod seal |
1 |
|
55 |
3315303410 |
Back head |
1 |
|
56 |
0147155503 |
SCREW, HEX HEAD |
8 |
|
57 |
3315244881 |
CHECK VALVE |
1 |
|
58 |
-- |
Check valve |
1 |
|
59 |
3315280800 |
VALVE RUBBER |
1 |
|
60 |
3315307700 |
Base plate |
1 |
|
61 |
3315323990 |
Bolt kit |
1 |
|
62 |
-- |
Screw |
14 |
|
63 |
-- |
Nut, M20 |
14 |
|
64 |
0211110495 |
M20x80 |
2 |

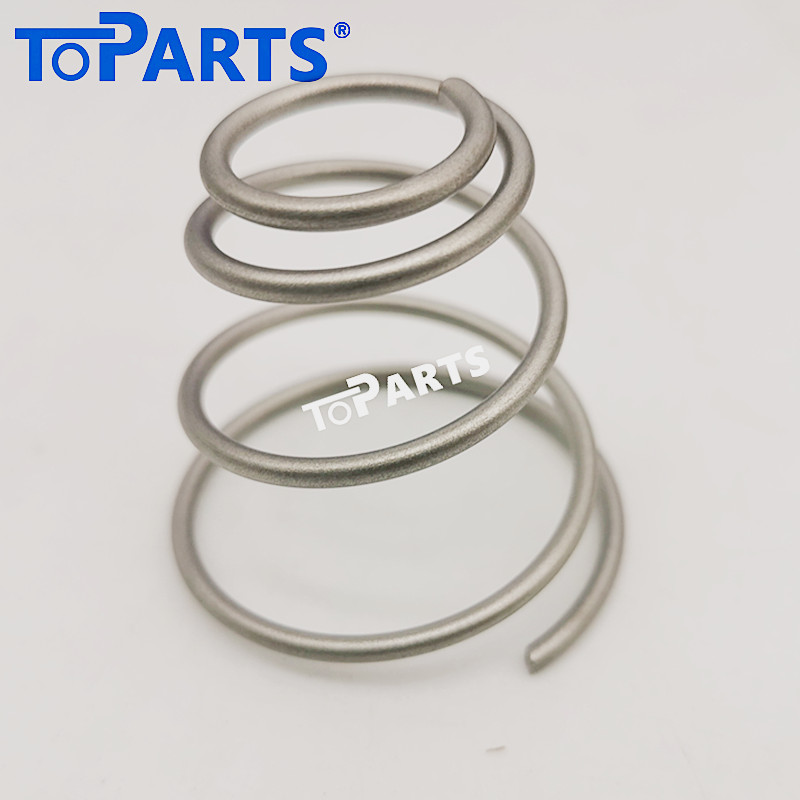

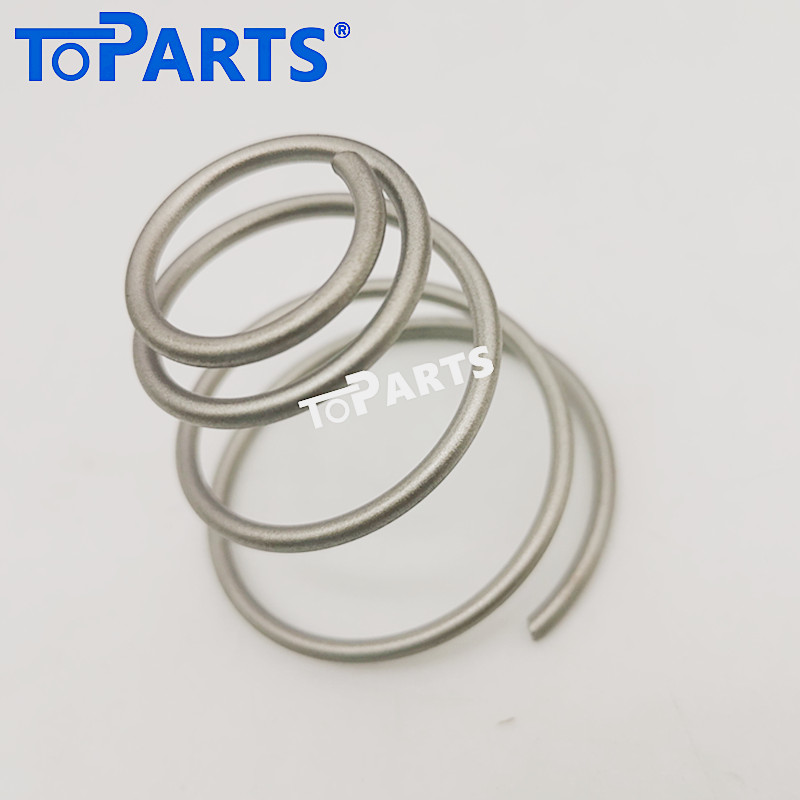

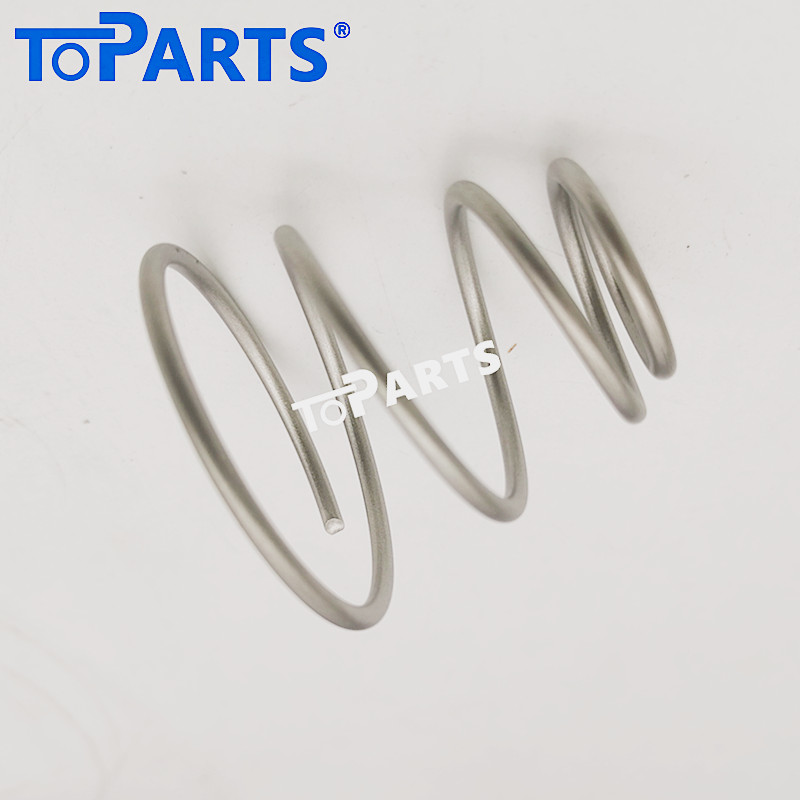

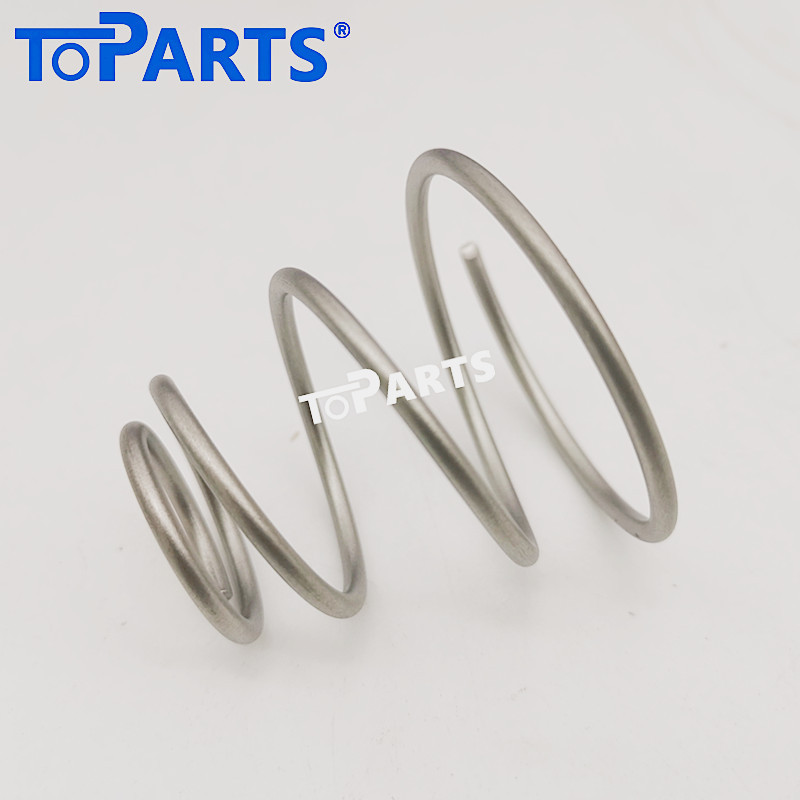

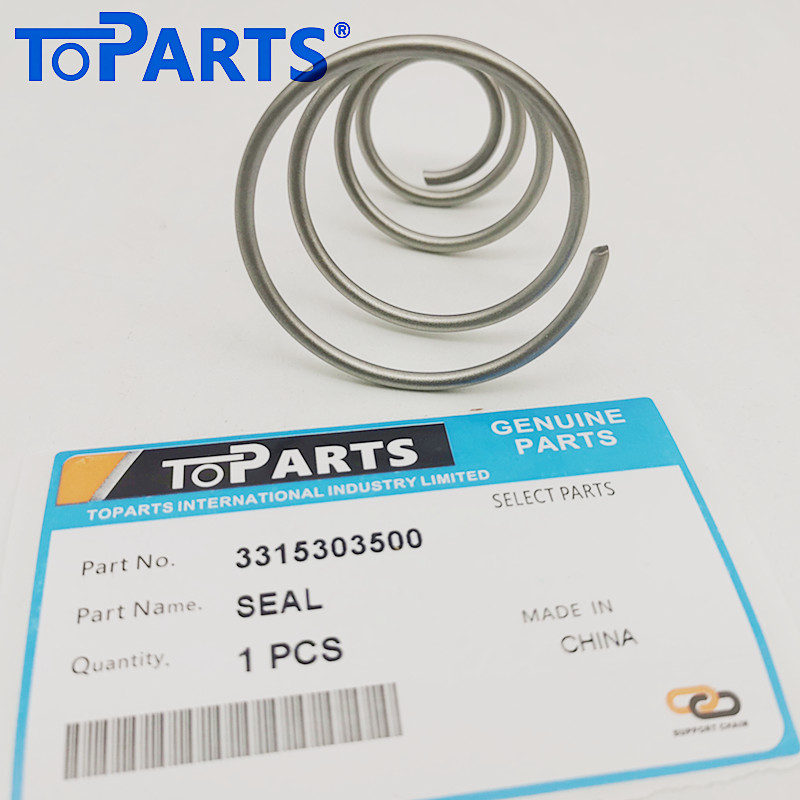

Toparts 3315303500 Coil Spring for Atlas Copco SB Series Breaker Accumulators
Restore the energy storage and consistent performance of your Atlas Copco hydraulic hammer with the Toparts 3315303500 Coil Spring. This critical component is essential for the proper function of the accumulator in various SB series models, ensuring reliable and powerful operation.
Engineered for Atlas Copco SB Series
The Toparts 3315303500 Coil Spring is precision-engineered as a direct replacement for the original part, providing a perfect fit and dependable force mechanism within the accumulator of your hydraulic breaker.
Key Features and Compatibility:
Direct Replacement: Seamlessly replaces the OEM part number 3315303500, guaranteeing compatibility and easy installation.
Broad Application: Designed for use across several popular Atlas Copco SB series hydraulic breakers, including the SB202, SB302, SB552, and SB702.
High-Grade Material: Manufactured from durable, high-tensile spring steel, our coil spring is built to withstand continuous, high-cycle compression and decompression without fatigue or failure.
Restores Accumulator Function: A new coil spring ensures the hydraulic fluid is correctly pressurized and metered, restoring the breaker's optimal impact energy and cycle rate.
Enhanced Breaker Performance: Maintaining the integrity of the accumulator is vital for protecting the hydraulic system and ensuring consistent, powerful breaking force.
Product Details:
Part Number: 3315303500
Component Type: Accumulator Coil Spring
Compatible Breakers: Atlas Copco SB202, SB302, SB552, SB702 Hydraulic Breakers
Application: Accumulator Energy Storage/Pressure Regulation
Manufacturer: Toparts
Don't let a fatigued spring compromise your breaking power. Invest in the reliable Toparts 3315303500 Coil Spring to keep your Atlas Copco SB series hydraulic breaker operating efficiently and powerfully.
