Parts list
|
Item |
Part No |
Name |
QTY |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315353980 |
Bushing standard, complete |
1 |
|
3 |
-- |
Bushing, |
1 |
|
4 |
3315356400 |
Scraper ring |
1 |
|
5 |
0663210289 |
O-ring, |
4 |
|
6 |
3315291800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, |
1 |
|
8 |
0686644207 |
PLUG |
6 |
|
9 |
3315395200 |
Water Nossle |
1 |
|
10 |
3315293000 |
Lock pin |
1 |
|
11 |
0108169126 |
Spring pin, option |
1 |
|
12 |
3315147000 |
Retainer bar |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371801 |
PLUG |
4 |
|
15 |
3315293300 |
Coil spring |
1 |
|
16 |
3315288900 |
Diaphragm support |
1 |
|
17 |
3315289000 |
Diaphragm |
1 |
|
18 |
3315282400 |
Accumulator house |
1 |
|
19 |
0211196534 |
HEX SOCK. SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0663211400 |
O-RING |
1 |
|
25 |
0101414000 |
PIN |
1 |
|
26 |
0580001846 |
PIPE COUPLING |
1 |
|
27 |
-- |
Nipple |
1 |
|
28 |
0664000003 |
Seal ring |
1 |
|
29 |
0663905501 |
O-RING |
|
|
30 |
0570700019 |
CAP |
2 |
|
31 |
3315364000 |
Valve cover |
1 |
|
32 |
0663211490 |
O-ring |
2 |
|
33 |
3315291900 |
Control valve |
1 |
|
34 |
0665090014 |
SEAL RING |
2 |
|
35 |
3315305000 |
Plug |
1 |
|
36 |
3315335000 |
Pressure relief valve, complete |
1 |
|
37 |
-- |
Pressure relief valve |
1 |
|
38 |
0663903201 |
O-RING |
1 |
|
39 |
0663905401 |
O-ring, |
1 |
|
40 |
3315369551 |
Restrictor standard, complete |
1 |
|
41 |
0663905401 |
O-ring, |
1 |
|
42 |
0663903201 |
O-RING |
1 |
|
43 |
-- |
Restrictor, |
1 |
|
44 |
0544215300 |
GREASE NIPPLE |
1 |
|
45 |
0665909954 |
Wiper |
1 |
|
46 |
0665070131 |
Piston rod seal |
1 |
|
47 |
0663211456 |
O-ring, |
5 |
|
48 |
0663210631 |
O-RING |
1 |
|
49 |
3315291300 |
Liner |
1 |
|
50 |
0663210053 |
O-RING |
4 |
|
51 |
3315291700 |
Piston |
1 |
|
52 |
0665070132 |
Piston rod seal |
1 |
|
53 |
3315293900 |
Back head |
1 |
|
54 |
3315244881 |
CHECK VALVE |
1 |
|
55 |
-- |
Check valve |
1 |
|
56 |
3315280800 |
VALVE RUBBER |
1 |
|
57 |
0147148103 |
SCREW, HEX HEAD |
8 |
|
58 |
3315304300 |
Base plate with through borings |
1 |
|
59 |
3315296490 |
Bolt kit |
1 |
|
60 |
-- |
Screw, |
8 |
|
61 |
-- |
Nut, |
8 |

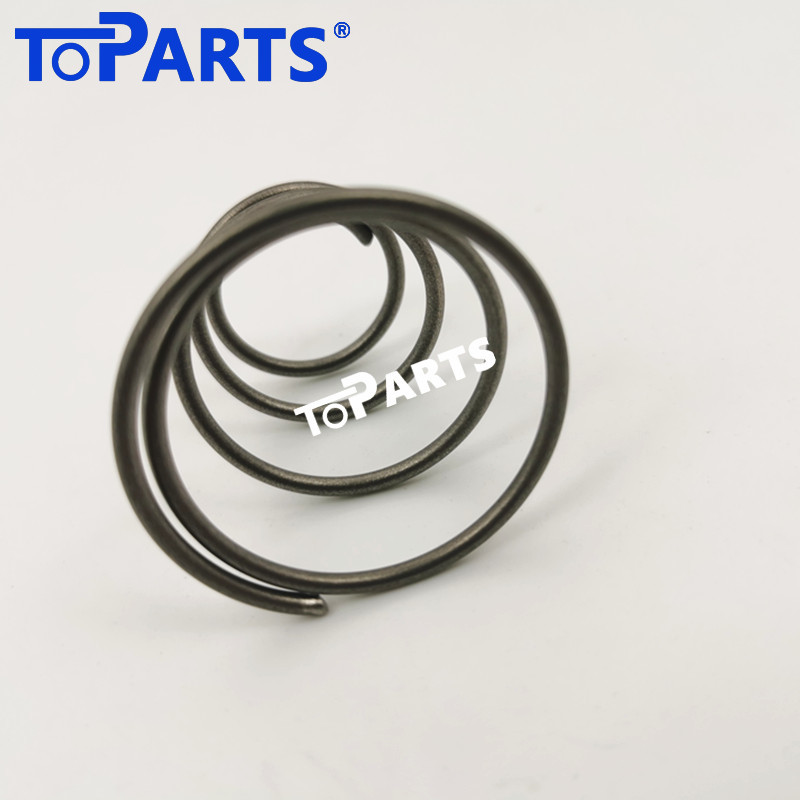

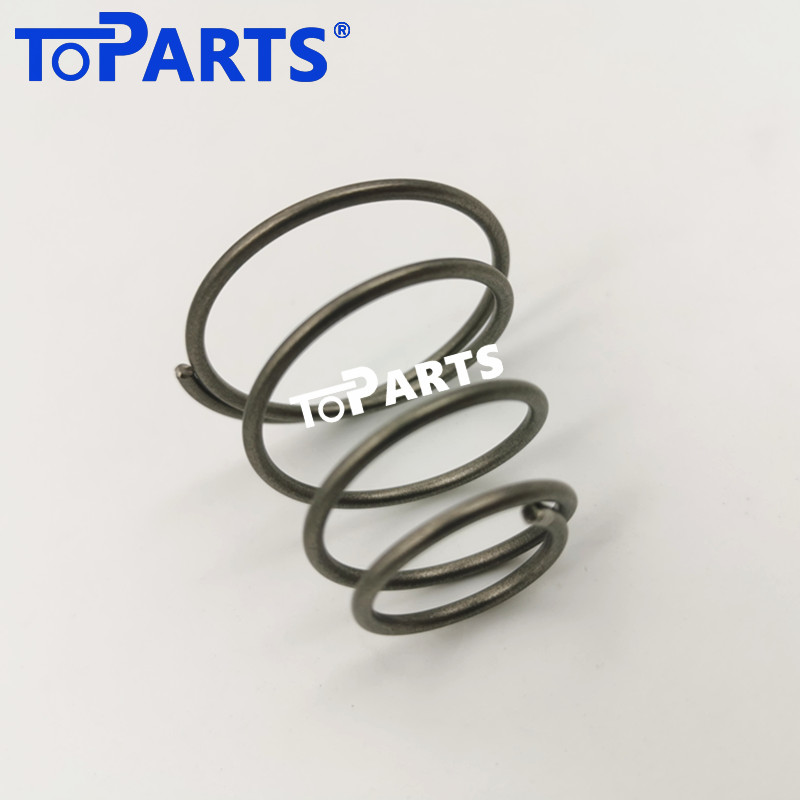

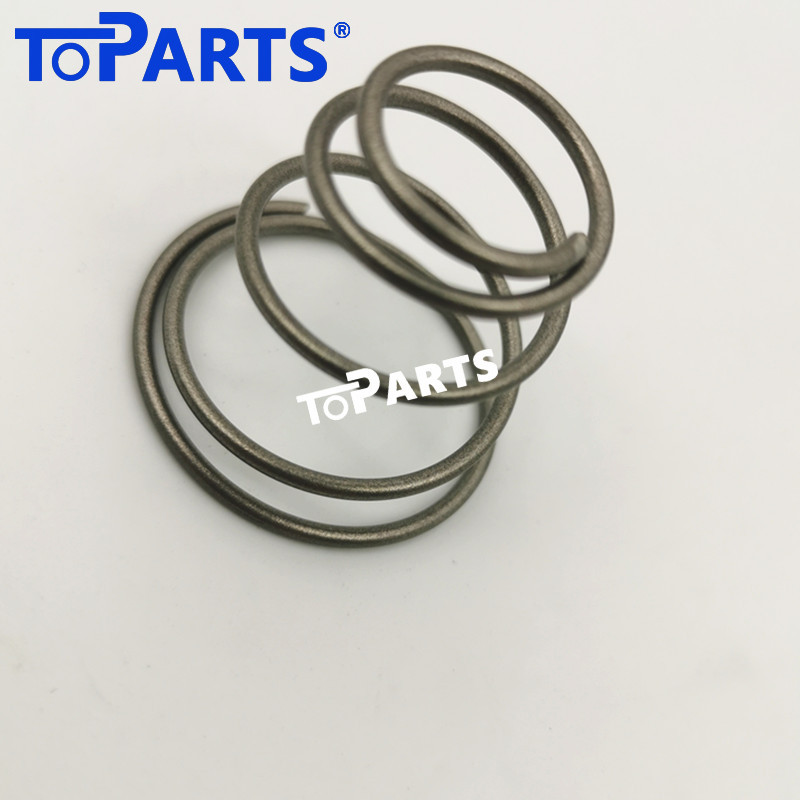

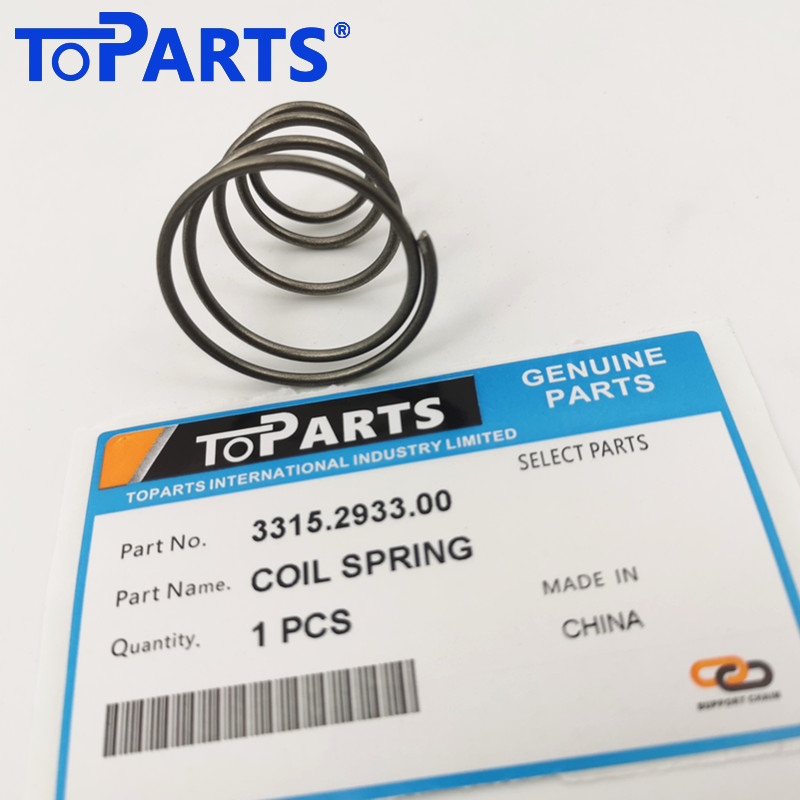

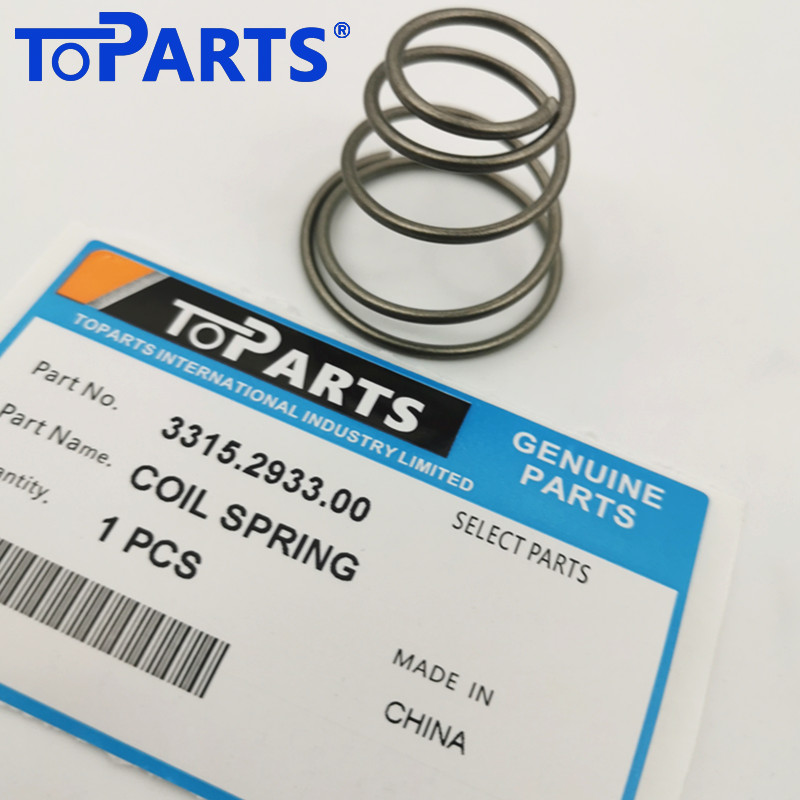

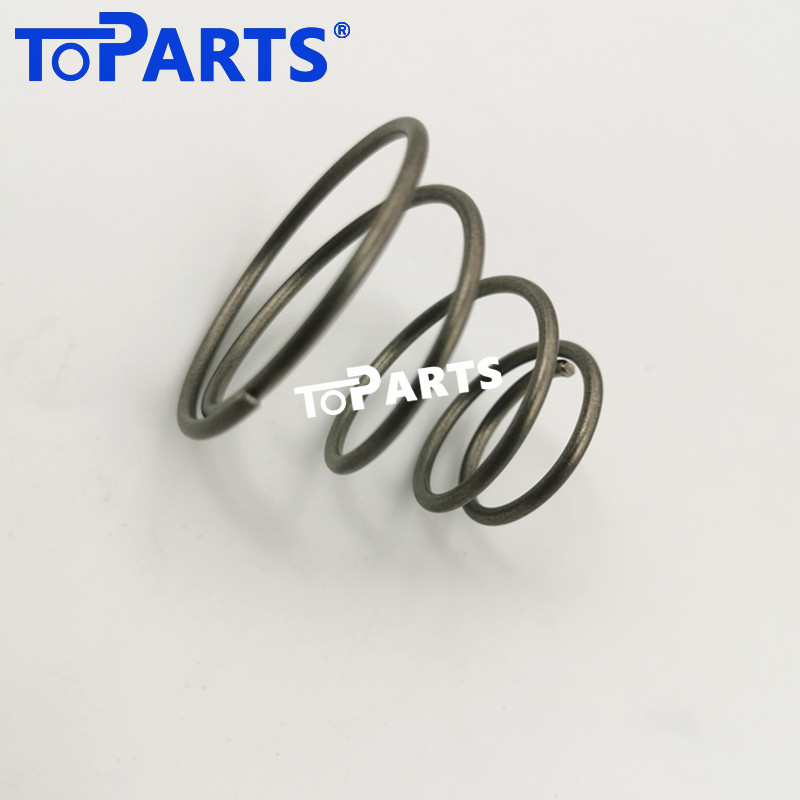

Toparts 3315293300 Coil Spring for Atlas Copco/Epiroc SB102 & SB152
Ensure the structural stability and rapid response of your breaker’s energy recovery system with the Toparts 3315293300 Coil Spring. Specifically engineered for the Atlas Copco / Epiroc SB102 and SB152 hydraulic breakers, this high-performance spring is a critical component for the accumulator assembly, providing the necessary tension and support for the internal diaphragm.
Precision Tension for Solid Body Breakers
The SB series "Solid Body" breakers are famous for their reliability and high impact frequency. Within the accumulator system, the 3315293300 coil spring plays a vital role in positioning the diaphragm and assisting in the energy absorption process. A weakened or fatigued spring can lead to inconsistent striking force and increased vibration. Toparts has manufactured this spring to meet the exact mechanical requirements of the SB series, ensuring your hammer remains a powerhouse on the job site.
Key Features and Benefits:
Dual Model Compatibility: Designed to fit perfectly into both the Atlas Copco / Epiroc SB102 and SB152 hydraulic hammers, matching OEM part number 3315293300.
High-Fatigue Chrome Silicon Steel: Manufactured from premium-grade spring steel that maintains its elasticity and "spring rate" through millions of rapid compression cycles.
Optimal Energy Recovery: Provides consistent tension to the diaphragm, allowing the accumulator to store and release energy efficiently for maximum impact power.
Corrosion-Resistant Coating: Treated with a specialized protective finish to prevent rust and degradation caused by hydraulic oil contact and moisture in the air.
Precision Dimensions: Engineered to exact tolerances to ensure a "drop-in" fit during service, preventing internal friction or misalignment within the accumulator housing.
Extended Component Life: By maintaining the correct mechanical balance, this spring helps protect the diaphragm from over-extension, reducing the frequency of costly repairs.
Product Specifications:
Feature Details
Part Number:3315293300
Compatible Models:Atlas Copco / Epiroc SB102, SB152
Component Type:Accumulator Coil Spring / Diaphragm Spring
Material Grade:High-Tensile Fatigue-Resistant Spring Steel
Application:Demolition, Trenching, and Light Construction
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a global leader in high-end aftermarket parts for hydraulic attachments. We understand that in demolition, uptime is everything. Our 3315293300 coil spring is rigorously tested to ensure it matches the performance of original parts, providing you with a durable, cost-effective solution that keeps your SB series breaker hitting hard.
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
