English

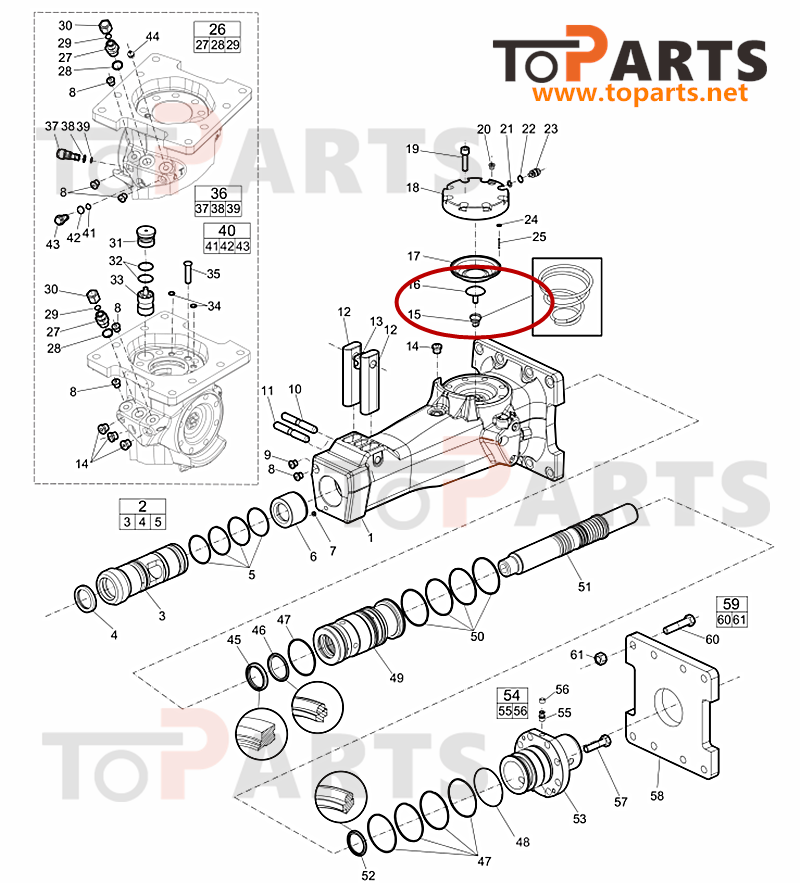

Parts list
|
Item |
Part No |
Name |
QTY |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315353980 |
Bushing standard, complete |
1 |
|
3 |
-- |
Bushing, |
1 |
|
4 |
3315356400 |
Scraper ring |
1 |
|
5 |
0663210289 |
O-ring, |
4 |
|
6 |
3315291800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, |
1 |
|
8 |
0686644207 |
PLUG |
6 |
|
9 |
3315395200 |
Water Nossle |
1 |
|
10 |
3315293000 |
Lock pin |
1 |
|
11 |
0108169126 |
Spring pin, option |
1 |
|
12 |
3315147000 |
Retainer bar |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371801 |
PLUG |
4 |
|
15 |
3315293300 |
Coil spring |
1 |
|
16 |
3315288900 |
Diaphragm support |
1 |
|
17 |
3315289000 |
Diaphragm |
1 |
|
18 |
3315282400 |
Accumulator house |
1 |
|
19 |
0211196534 |
HEX SOCK. SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0663211400 |
O-RING |
1 |
|
25 |
0101414000 |
PIN |
1 |
|
26 |
0580001846 |
PIPE COUPLING |
1 |
|
27 |
-- |
Nipple |
1 |
|
28 |
0664000003 |
Seal ring |
1 |
|
29 |
0663905501 |
O-RING |
|
|
30 |
0570700019 |
CAP |
2 |
|
31 |
3315364000 |
Valve cover |
1 |
|
32 |
0663211490 |
O-ring |
2 |
|
33 |
3315291900 |
Control valve |
1 |
|
34 |
0665090014 |
SEAL RING |
2 |
|
35 |
3315305000 |
Plug |
1 |
|
36 |
3315335000 |
Pressure relief valve, complete |
1 |
|
37 |
-- |
Pressure relief valve |
1 |
|
38 |
0663903201 |
O-RING |
1 |
|
39 |
0663905401 |
O-ring, |
1 |
|
40 |
3315369551 |
Restrictor standard, complete |
1 |
|
41 |
0663905401 |
O-ring, |
1 |
|
42 |
0663903201 |
O-RING |
1 |
|
43 |
-- |
Restrictor, |
1 |
|
44 |
0544215300 |
GREASE NIPPLE |
1 |
|
45 |
0665909954 |
Wiper |
1 |
|
46 |
0665070131 |
Piston rod seal |
1 |
|
47 |
0663211456 |
O-ring, |
5 |
|
48 |
0663210631 |
O-RING |
1 |
|
49 |
3315291300 |
Liner |
1 |
|
50 |
0663210053 |
O-RING |
4 |
|
51 |
3315291700 |
Piston |
1 |
|
52 |
0665070132 |
Piston rod seal |
1 |
|
53 |
3315293900 |
Back head |
1 |
|
54 |
3315244881 |
CHECK VALVE |
1 |
|
55 |
-- |
Check valve |
1 |
|
56 |
3315280800 |
VALVE RUBBER |
1 |
|
57 |
0147148103 |
SCREW, HEX HEAD |
8 |
|
58 |
3315304300 |
Base plate with through borings |
1 |
|
59 |
3315296490 |
Bolt kit |
1 |
|
60 |
-- |
Screw, |
8 |
|
61 |
-- |
Nut, |
8 |

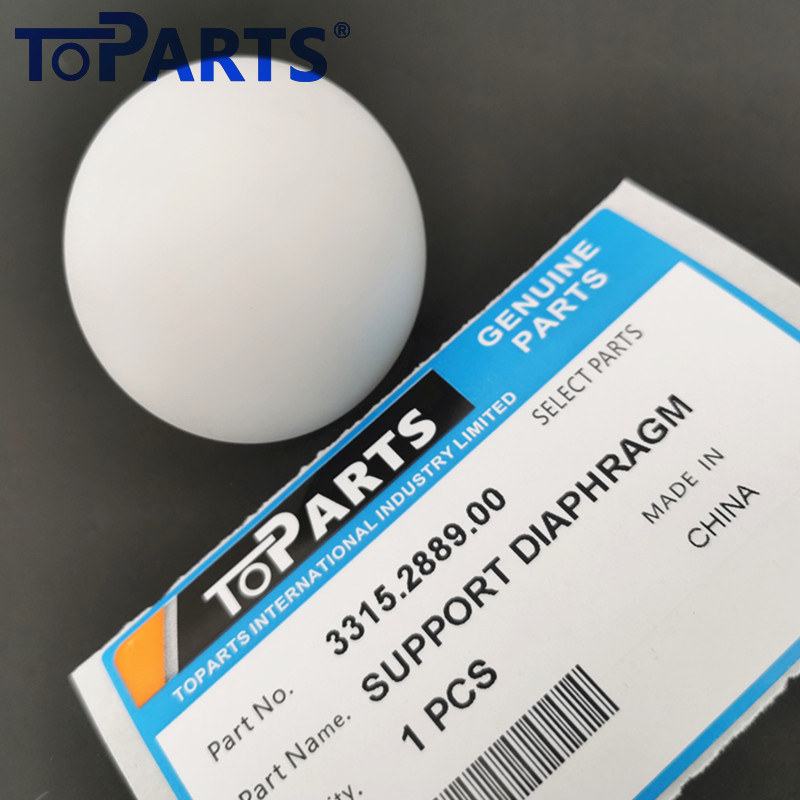

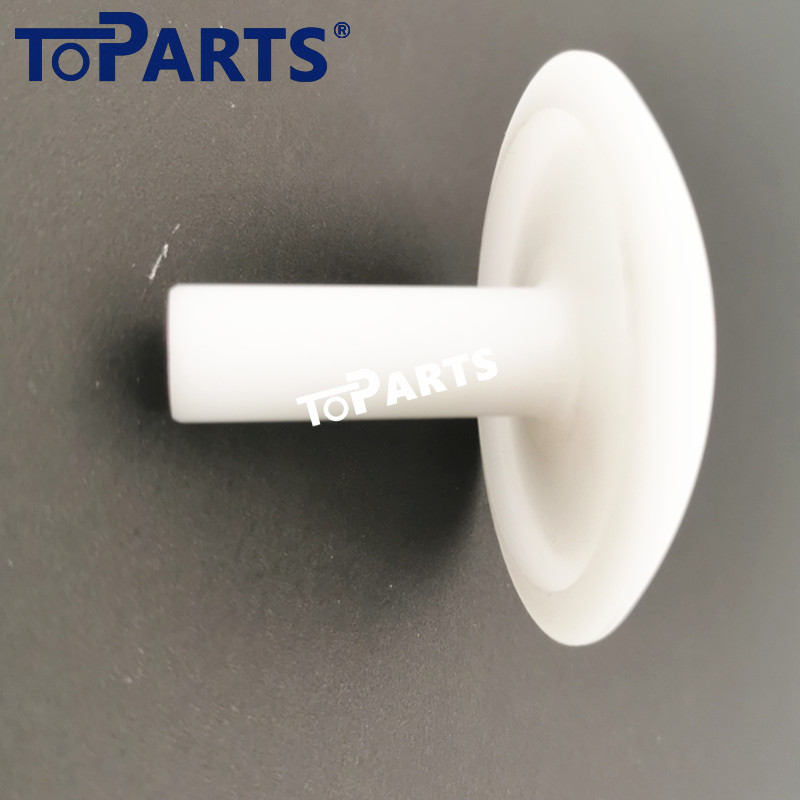

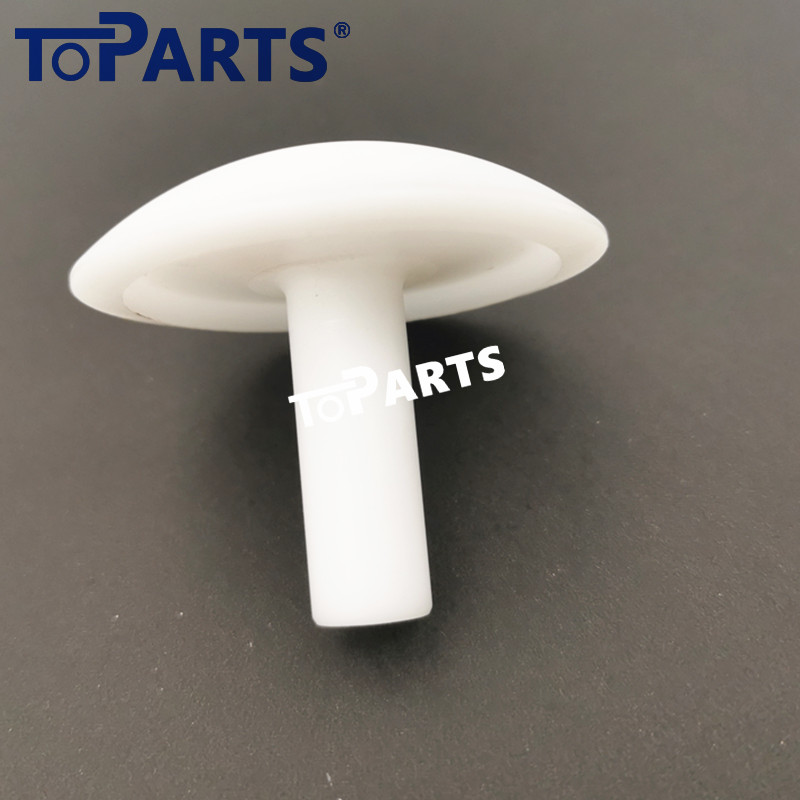

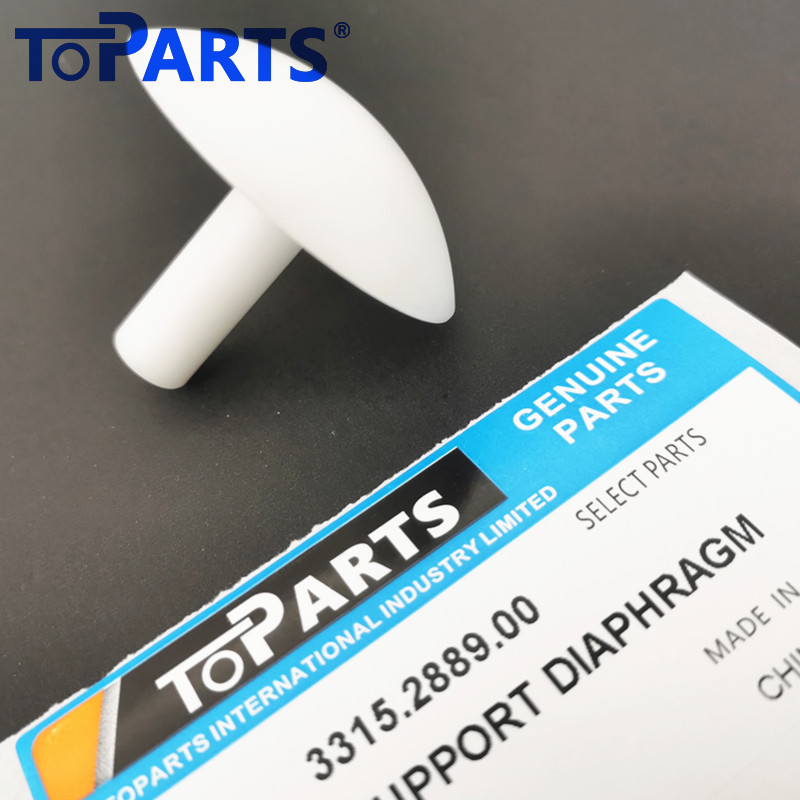

Toparts 3315288900 Hydraulic Breaker Diaphragm Support for Epiroc SB152
Maintain the structural integrity and striking precision of your hammer with the Toparts 3315288900 Diaphragm Support. Specifically engineered for the Epiroc (Atlas Copco) SB152 hydraulic breaker, this critical internal component ensures the nitrogen accumulator system operates at peak efficiency for consistent, high-frequency rock breaking.
Essential Protection for Your Accumulator System
The SB152 "Solid Body" breaker is known for its high power-to-weight ratio and durability. Central to this performance is the nitrogen accumulator, which uses a flexible diaphragm to absorb hydraulic shocks and boost impact energy. The 3315288900 Diaphragm Support acts as the internal skeleton, preventing the membrane from over-stretching or rupturing under high-pressure cycles. Toparts has manufactured this support to exact OEM specifications, ensuring a stable foundation for your breaker’s energy recovery system.
Key Features and Benefits:
Precision Fit for SB152: Fully compatible with Epiroc part number 3315288900. It is a direct replacement for the support found in the standard SB152 accumulator kit.
High-Strength Construction: Crafted from wear-resistant, high-grade alloy steel or reinforced composites (per application) to withstand the relentless vibrations and pressure fluctuations of the breaker body.
Extends Diaphragm Life: By providing a smooth, anatomically correct surface for the membrane to rest against, this support significantly reduces localized stress points and prevents premature diaphragm failure.
Maintains Striking Frequency: Ensures the gas-and-oil separation remains stable, allowing the SB152 to maintain its rated 850–1,900 blows per minute without losing energy.
Corrosion Resistant: Treated with a protective finish to resist the corrosive effects of hydraulic fluid and moisture often found in demanding job site environments.
Solid Body Integration: Designed to slide perfectly into the slim, compact housing of the SB series, facilitating quick and easy maintenance during routine service.
Product Specifications:
Feature:Details
Part Number:3315288900
Compatible Model:Epiroc / Atlas Copco SB152 Hydraulic Hammer
Component Type:Accumulator Diaphragm Support / Retainer
Material Grade:High-Spec Fatigue-Resistant Alloy
Application:Construction, Demolition, and Underground Scaling
Manufacturer:Toparts
Why Trust Toparts?
Toparts is a leading specialist in the manufacturing and distribution of premium hydraulic breaker components. We understand that in the demolition industry, reliability is your greatest tool. Our 3315288900 support is built to the highest industrial standards, offering a cost-effective alternative to OEM parts without sacrificing performance or durability.
Would you like me to check the availability of the matching 3315289000 Diaphragm (Membrane) or the complete SB152 Seal Kit to finish your maintenance project?
