Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
1 |
3315287000 |
1 |
Hammer body |
|
2 |
3315277980 |
1 |
Bushing, compl. |
|
3 |
3315282500 |
1 |
– Scraper ring |
|
4 |
0663210053 |
4 |
– O-ring |
|
5 |
3315277800 |
1 |
Stop ring |
|
6 |
0686100009 |
1 |
Plug |
|
7 |
0686644207 |
7 |
Plug |
|
8 |
3315135000 |
1 |
Lock pin |
|
8 |
0108169127 |
1 |
Spring pin, option |
|
9 |
3315134900 |
2 |
Tool retainer |
|
10 |
3315141900 |
1 |
Lock buffer |
|
11 |
0686371801 |
4 |
Hex. sock. Plug |
|
12 |
3315293300 |
1 |
Coil spring |
|
13 |
3315288900 |
1 |
Diaphragm support |
|
14 |
3315289000 |
1 |
Diaphragm |
|
15 |
3315282400 |
1 |
Accumulator house |
|
16 |
0211140400 |
8 |
Hex. sock. screw |
|
17 |
0686371805 |
1 |
Plug |
|
18 |
0661100024 |
1 |
Seal washer |
|
19 |
0663212000 |
1 |
O-ring |
|
20 |
3315292100 |
1 |
Charge valve |
|
21 |
0101414000 |
1 |
Parallell pin |
|
22 |
0663211400 |
1 |
O-ring |
|
23 |
0570700003 |
2 |
Nippel compl |
|
24 |
0663905501 |
2 |
– O-ring |
|
25 |
0664000003 |
2 |
– Seal-ring |
|
26 |
0570700019 |
2 |
Cap |
|
27 |
0544215300 |
1 |
Grease nipple |
|
28 |
3315305200 |
1 |
Plug |
|
29 |
3315291100 |
1 |
Preassure release valve, compl |
|
30 |
0663903201 |
2 |
– O-ring |
|
31 |
0663905401 |
2 |
– O-ring |
|
32 |
3315295000 |
1 |
– Support ring |
|
33 |
0665090014 |
2 |
Seal |
|
34 |
3315301100 |
1 |
Plug |
|
35 |
0665909946 |
1 |
Wiper |
|
36 |
0665070125 |
1 |
Piston rod seal |
|
37 |
0663210494 |
6 |
O-ring |
|
38 |
3315277400 |
1 |
Liner |
|
39 |
3315277300 |
1 |
Piston |
|
40 |
0665070124 |
1 |
Piston rod seal |
|
41 |
3315293100 |
1 |
Back head |

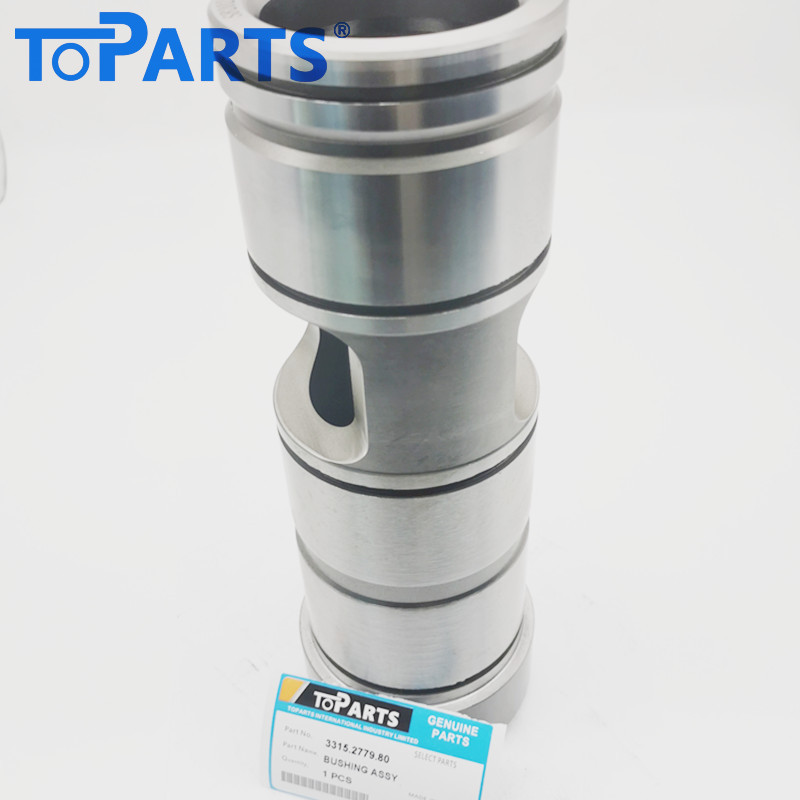

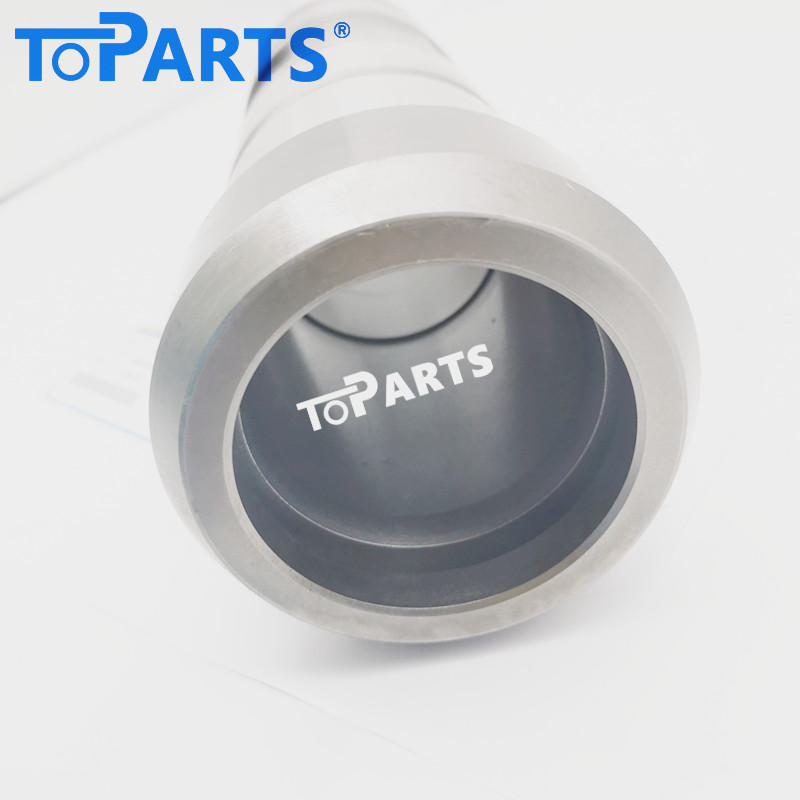

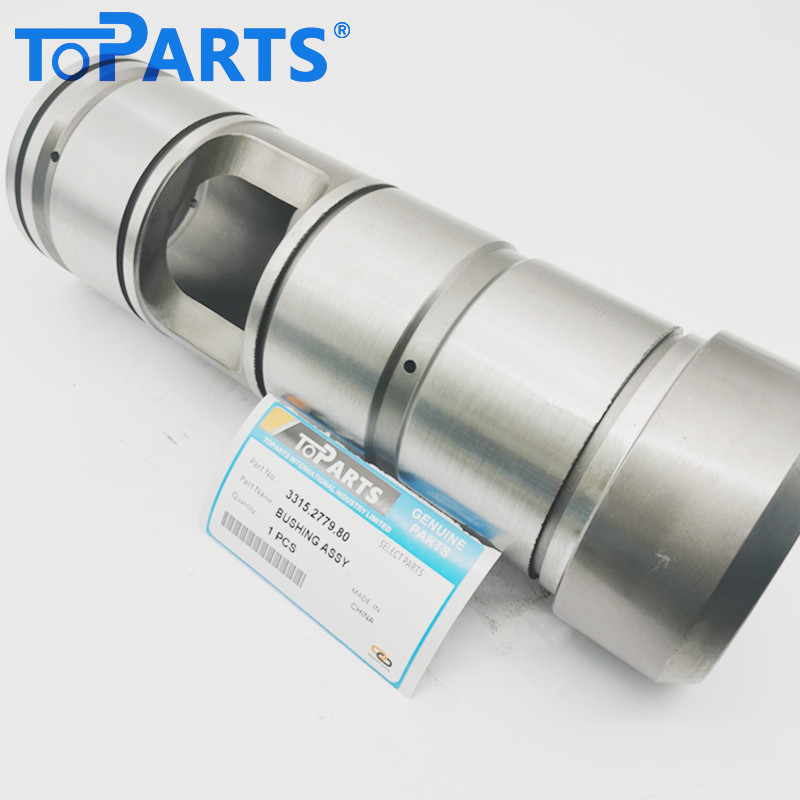

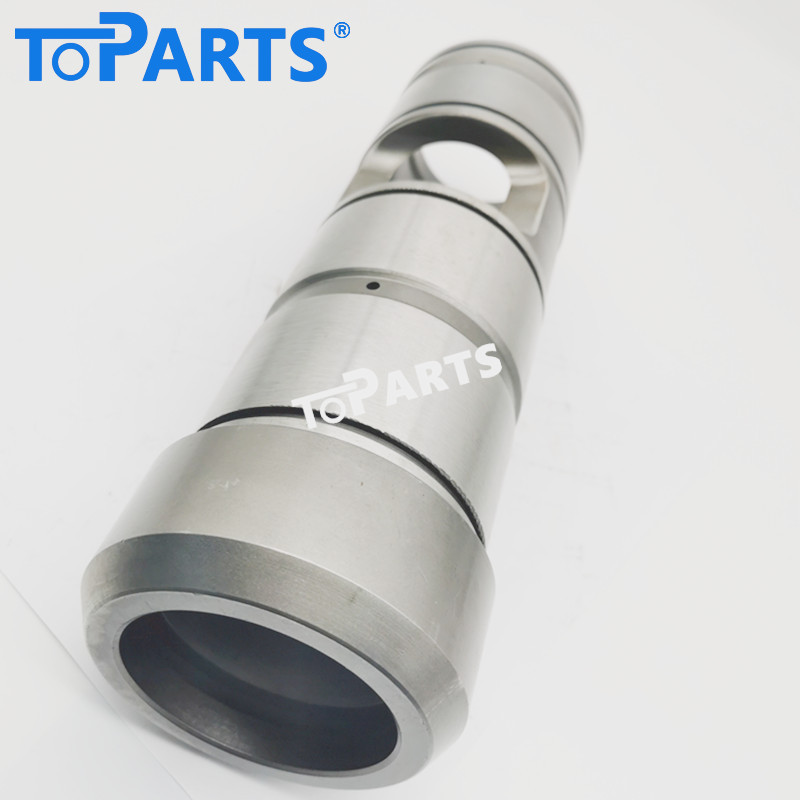

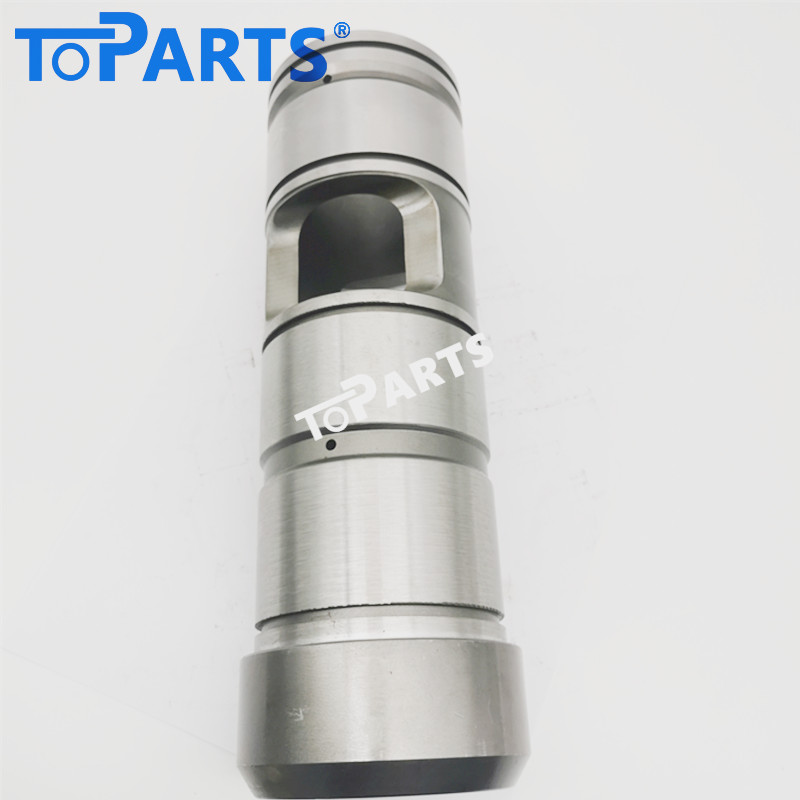

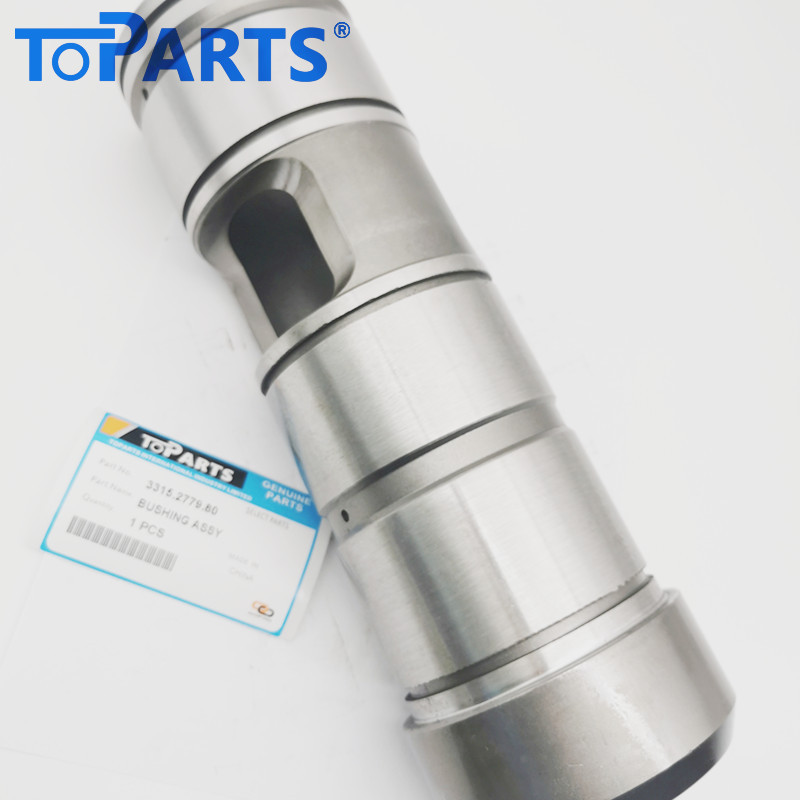

Toparts 3315277980 Complete Bushing for Atlas Copco SB202 Hydraulic Hammer
Extend the operational life of your equipment and ensure peak breaking performance with the Toparts 3315277980 Complete Bushing. Specifically engineered for the Atlas Copco / Epiroc SB202 Hydraulic Hammer, this high-precision component (also associated with part number 3315354080) is the essential replacement part for maintaining tool alignment and protecting your hammer’s internal housing.
Engineered for the "Solid Body" SB202
The Atlas Copco SB202 is renowned for its compact, high-efficiency "Solid Body" design. Because the bushing is the primary contact point that guides the working tool (chisel), it endures extreme friction and high-frequency vibrations. Toparts has manufactured the 3315277980 using advanced metallurgy to ensure it survives the most abrasive demolition and trenching environments.
Key Features and Benefits:
Direct OEM Compatibility: Precisely matched to Atlas Copco / Epiroc part numbers 3315277980 and 3315354080, ensuring a perfect press-fit into the SB202 housing without the need for additional machining.
High-Strength Alloy Steel: Forged from premium-grade, wear-resistant alloy steel and subjected to a specialized deep-case hardening process. This results in a component that resists "mushrooming" and excessive wear under heavy loads.
Precision Guidance: Engineered with strict tolerances to maintain perfect alignment of the piston and the tool. This reduces lateral force on the piston, preventing expensive internal scoring and seal failure.
Optimized Lubrication Channels: Designed with internal grooves that ensure consistent grease distribution, reducing heat buildup and friction-related wear during long shifts.
Enhanced Impact Absorption: By providing a stable and secure fit for the chisel, this bushing helps dampen harmful vibrations, protecting the hammer’s main body and the carrier machine’s arm.
Product Specifications:
Feature:Details
Primary Part Number:3315277980
Reference Part Number:3315354080
Compatible Model:Atlas Copco / Epiroc SB202
Component Type:Complete Bushing / Lower Bushing / Tool Guide
Material:Heat-Treated High-Tensile Alloy Steel
Application:Construction, Trenching, and Light Demolition
Manufacturer:Toparts
Why Choose Toparts?
Toparts is a leading manufacturer specializing in high-end wear parts for the global hydraulic breaker industry. We understand that a bushing is a "sacrificial" part designed to protect your hammer’s core. Our 3315277980 bushing offers the professional-grade durability of an OEM part at a highly competitive price point, maximizing your uptime and ROI.
Would you like me to check the availability of the matching Tool Retainer Pins or the Seal Kit for your Atlas Copco SB202?
