English

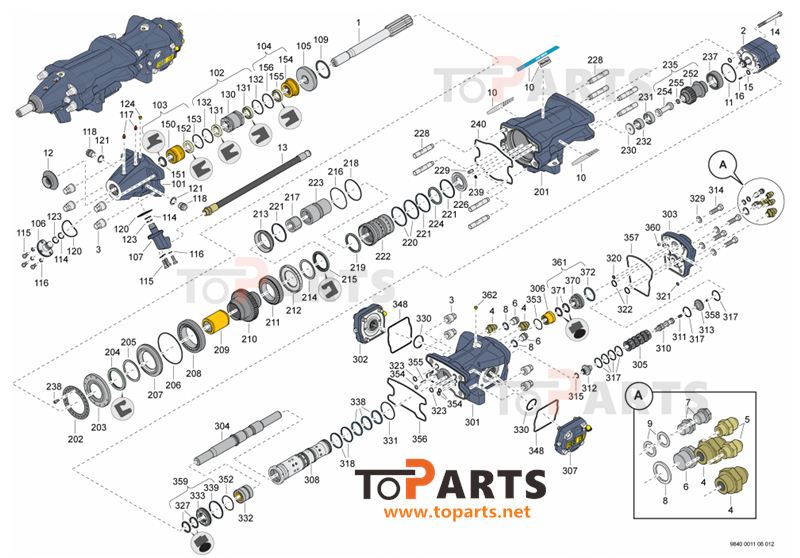

Parts list
|
No. |
Part no |
Qty |
Description |
|
100 |
- |
1 |
FRONT GROUP |
|
200 |
- |
1 |
GEAR HOUSING GR |
|
300 |
- |
1 |
CYLINDER GROUP |
|
1 |
- |
1 |
SHANK ADAPTER |
|
1 |
- |
1 |
SHANK ADAPTER |
|
1 |
- |
1 |
SHANK ADAPTER |
|
1 |
- |
1 |
SHANK ADAPTER |
|
2 |
3115550983 |
1 |
ROTATION MOTOR |
|
3 |
3115376601 |
8 |
DOME NUT |
|
4 |
3176651700 |
4 |
NIPPLE |
|
5 |
3176651200 |
2 |
NIPPLE |
|
6 |
0686371635 |
3 |
PLUG |
|
7 |
0686371606 |
2 |
PLUG |
|
8 |
0661103800 |
3 |
SEAL WASHER |
|
9 |
0661102600 |
2 |
SEAL WASHER |
|
10 |
- |
1 |
LABEL SET |
|
11 |
0663916900 |
1 |
O-RING |
|
12 |
3115223100 |
1 |
DRILL COLLAR |
|
13 |
3128000320 |
1 |
HOSE ASSEMBLY |
|
14 |
0147141903 |
4 |
SCREW, HEX HEAD |
|
15 |
3115600314 |
2 |
SEAL |
|
16 |
0108129100 |
1 |
SPRING PIN |
|
101 |
3115580240 |
1 |
FRONT PART COMP |
|
102 |
3115557282 |
1 |
FLUSH HEAD COMP |
|
103 |
3115557181 |
1 |
GUIDE COMPL. |
|
104 |
3115557381 |
1 |
GUIDE COMPL. |
|
105 |
3115556900 |
1 |
STOP RING |
|
106 |
3115557500 |
1 |
PLUG |
|
107 |
3115557402 |
1 |
CONNECT. PLATE |
|
109 |
0663214100 |
1 |
O-RING |
|
114 |
3115328902 |
2 |
SEAL RING |
|
115 |
0147136303 |
6 |
SCREW, HEX HEAD |
|
116 |
0333 5200 14 |
6 |
LOCK WASHER |
|
117 |
0544 2162 00 |
2 |
GREASE NIPPLE |
|
118 |
0686 3716 35 |
2 |
PLUG |
|
120 |
0663 6137 00 |
2 |
O-RING |
|
121 |
0661 1038 00 |
2 |
SEAL WASHER |
|
123 |
3115 3289 05 |
2 |
SEAL RING |
|
124 |
0686 9110 00 |
1 |
PROTECTION PLUG |
|
130 |
- |
1 |
FLUSHING HEAD |
|
131 |
3115 3363 00 |
2 |
CUP SEAL |
|
132 |
0663 2101 68 |
2 |
O-RING |
|
150 |
- |
1 |
GUIDE |
|
151 |
3115 3282 03 |
1 |
WIPER |
|
152 |
3115 3363 00 |
1 |
CUP SEAL |
|
153 |
0663 2101 68 |
1 |
O-RING |
|
154 |
- |
1 |
GUIDE |
|
155 |
3115 3363 00 |
1 |
CUP SEAL |
|
156 |
0663 2101 68 |
1 |
O-RING |
|
201 |
3115 6000 76 |
1 |
GEAR HOUS. COMP |
|
202 |
3115 5584 00 |
1 |
WASHER |
|
203 |
3115 5586 01 |
1 |
NUT |
|
204 |
3115 5606 00 |
1 |
SEAL |
|
205 |
3115 5661 00 |
1 |
SPACER |
|
206 |
0663 6152 00 |
1 |
O-RING |
|
207 |
3115 6001 65 |
1 |
SUPPORT RING |
|
208 |
0509 0225 00 |
1 |
ROLLER BEARING |
|
209 |
3115 6001 66 |
1 |
DRIVER |
|
210 |
3115 6001 62 |
1 |
ROT.CHUCK |
|
211 |
0509 0222 00 |
1 |
ROLLER BEARING |
|
212 |
3115 6001 61 |
1 |
RING |
|
213 |
3115 5577 04 |
1 |
RING |
|
214 |
3115 5664 00 |
1 |
SPACER |
|
215 |
3115 5607 00 |
1 |
SEAL |
|
216 |
3115 5565 01 |
1 |
WAVE SPRING |
|
217 |
3115 6000 58 |
1 |
ROT.CH.BUSHING |
|
218 |
0663 6143 00 |
1 |
O-RING |
|
219 |
3115 6001 78 |
1 |
SEAL KIT |
|
220 |
3115 3289 30 |
2 |
SEAL RING |
|
221 |
3115328936 |
3 |
SEAL RING |
|
222 |
3115590000 |
1 |
LINER |
|
223 |
3115600006 |
1 |
DAMPING PISTON |
|
224 |
3115600179 |
1 |
SEAL KIT |
|
226 |
3115566505 |
1 |
RING |
|
228 |
3115548100 |
8 |
STUD |
|
229 |
0102045800 |
1 |
PIN |
|
230 |
3115364900 |
1 |
WASHER |
|
231 |
0516404700 |
1 |
NEEDLE BEARING |
|
232 |
0516410026 |
1 |
INNER RING |
|
235 |
- |
1 |
GEAR WHEEL COM. |
|
237 |
0515310306 |
1 |
NEEDLE BEARING |
|
238 |
0211195755 |
1 |
HEX SOCK. SCREW |
|
239 |
3115329002 |
1 |
SEAL RING |
|
240 |
3115580700 |
1 |
SEAL |
|
252 |
3115600163 |
1 |
GEAR WHEEL |
|
254 |
3115566300 |
1 |
SPACER |
|
255 |
3115245100 |
1 |
SLIDE WASHER |
|
301 |
3115581340 |
1 |
CYLINDER COMPL. |
|
302 |
3115600093 |
1 |
ACCUMULAT. ASSY |
|
303 |
3115580505 |
1 |
BACK HEAD |
|
304 |
3115579005 |
1 |
PISTON |
|
305 |
3115560205 |
1 |
VALVE LINER |
|
306 |
3115576401 |
1 |
PISTON GUIDE |
|
307 |
3115600094 |
1 |
ACCUMULAT. ASSY |
|
308 |
3115589300 |
1 |
LINER |
|
310 |
3115600122 |
1 |
VALVE PISTON |
|
311 |
3115600005 |
1 |
PLUNGER |
|
312 |
3115559607 |
1 |
VALVE COVER |
|
313 |
3115559705 |
1 |
VALVE COVER |
|
314 |
0147148003 |
4 |
SCREW, HEX HEAD |
|
315 |
3115328924 |
1 |
SEAL RING |
|
317 |
3115328935 |
6 |
SEAL RING |
|
318 |
3115328917 |
2 |
SEAL RING |
|
320 |
0665090014 |
1 |
SEAL RING |
|
321 |
3115329002 |
1 |
SEAL RING |
|
322 |
3115329010 |
2 |
SEAL RING |
|
323 |
0663990022 |
2 |
SEAL RING |
|
327 |
3115 6001 80 |
2 |
SEAL KIT |
|
329 |
0301 2378 00 |
4 |
PLAIN WASHER |
|
330 |
3115 3290 16 |
2 |
SEAL RING |
|
331 |
0663 2103 06 |
1 |
O-RING |
|
332 |
3115 6000 12 |
1 |
PISTON GUIDE |
|
333 |
- |
1 |
SEAL HOUSING |
|
338 |
3115 3289 22 |
3 |
SEAL |
|
339 |
3115 3289 37 |
1 |
SEAL RING |
|
348 |
3115 5810 00 |
1 |
SEAL |
|
352 |
3115 6000 07 |
1 |
WAVE SPRING |
|
353 |
3115 5566 02 |
1 |
WAVE SPRING |
|
354 |
0665 0900 15 |
3 |
SEAL RING |
|
355 |
0102 0458 00 |
1 |
PIN |
|
356 |
3115 5808 00 |
1 |
SEAL |
|
357 |
3115 5809 00 |
1 |
SEAL |
|
358 |
3115 1746 08 |
1 |
NOZZLE |
|
359 |
3115 6002 43 |
1 |
SEAL HOUSE COMP |
|
360 |
3115 5166 08 |
1 |
NOZZLE |
|
361 |
3115 6002 50 |
1 |
SEAL HOUSE COMP |
|
362 |
|
1 |
PROTECTION PLUG |
|
370 |
- |
1 |
SEAL HOUSING |
|
371 |
3115 6001 81 |
2 |
SEAL KIT |
|
372 |
3115 3289 22 |
1 |
SEAL |
|
|
- |
1 |
OPTIONAL SET |

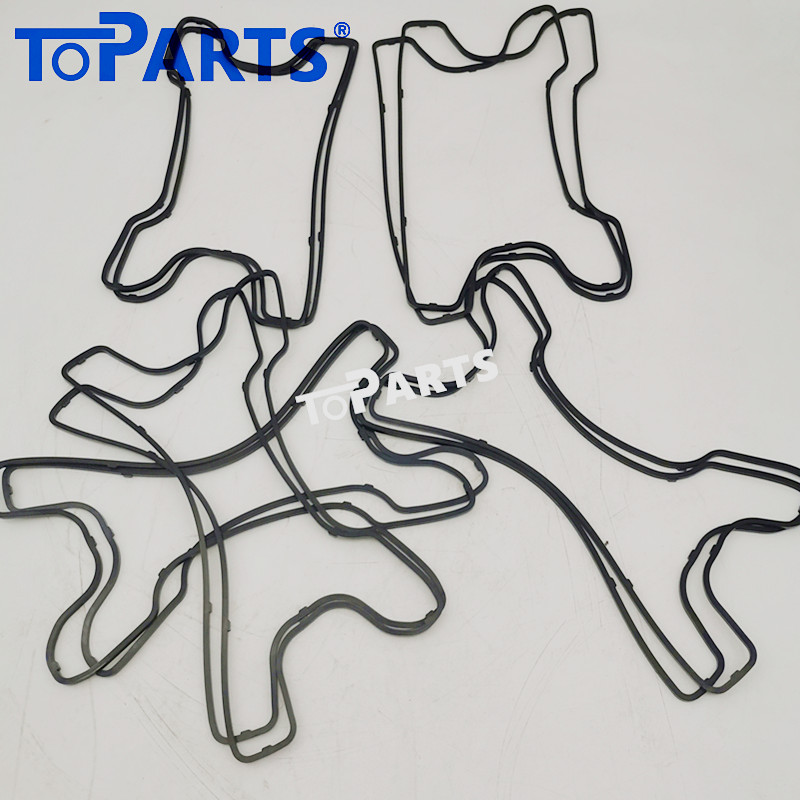

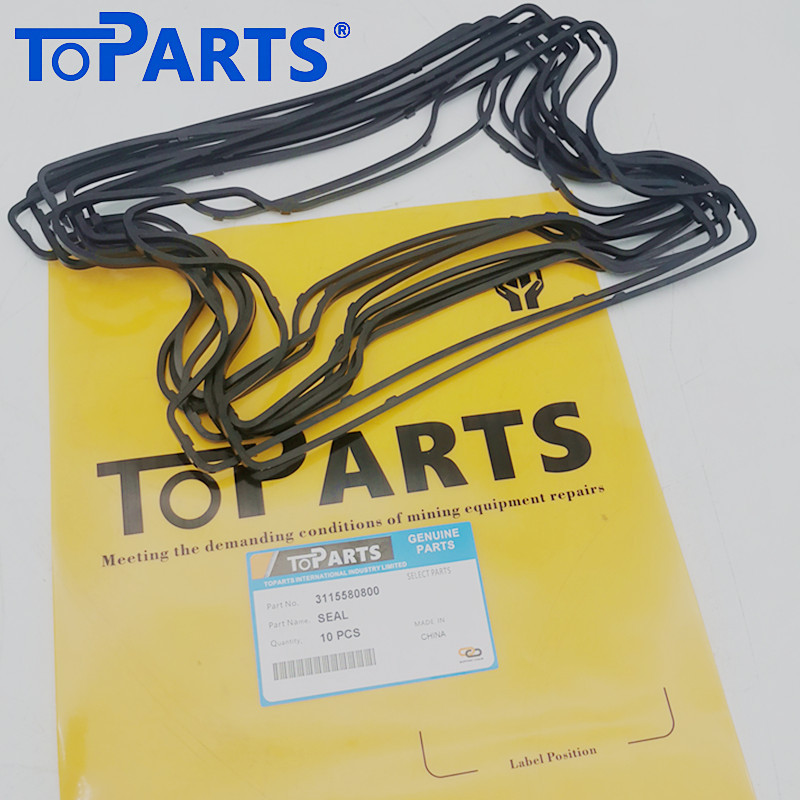

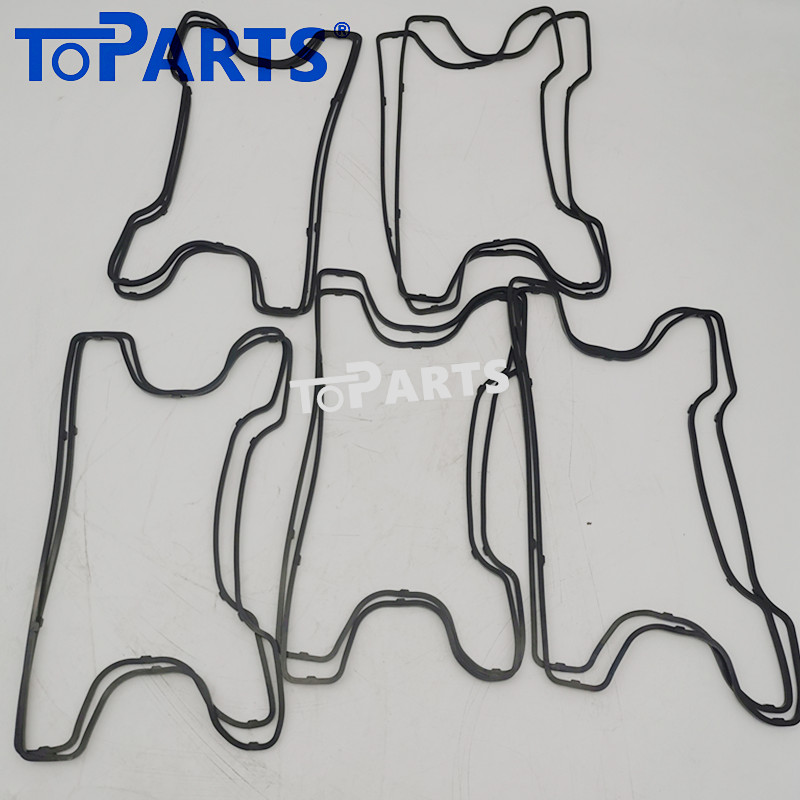

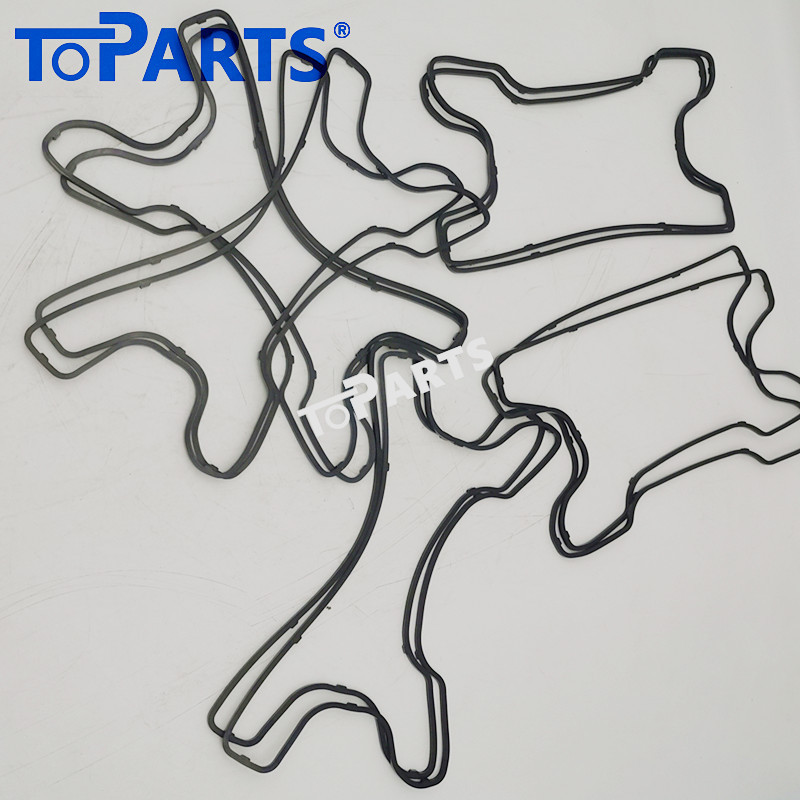

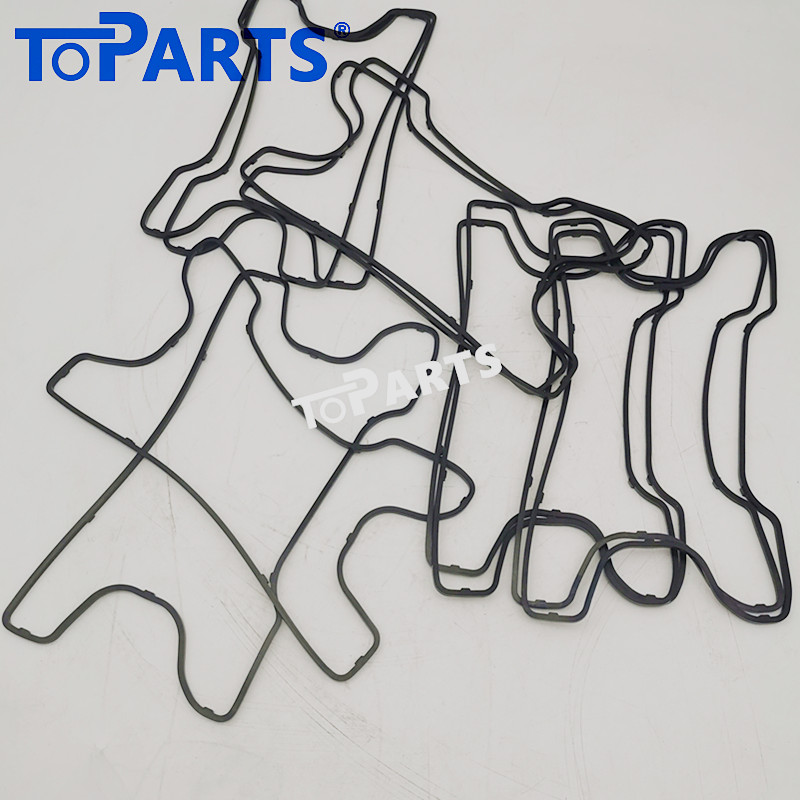

Toparts 3115580800 Seal for Atlas Copco MD20 Hydraulic Rock Drills
Maintain the peak performance of your Atlas Copco MD20 Hydraulic Rock Drill with the high-quality Toparts 3115580800 seal. This essential component is crucial for preventing hydraulic fluid leaks and ensuring your drill operates with maximum efficiency and power.
Engineered for Atlas Copco Drills
The Toparts 3115580800 seal is a direct aftermarket replacement, meticulously engineered to fit the specifications of the Atlas Copco MD20. We understand that a perfect fit is vital for the intense pressures and conditions a rock drill operates under. Our seal corresponds to the original part number, providing reliable compatibility and performance.
Key Features and Benefits:
Precision Fit: Manufactured to the exact dimensions of the OEM part, our seal provides a secure and effective barrier against leaks.
Superior Durability: Made from robust, high-grade materials, this seal is built to withstand the extreme pressures and rapid vibrations of hydraulic rock drilling, ensuring long-lasting performance and reducing the need for frequent replacements.
Restores Drilling Power: A leaking seal can cause a significant drop in hydraulic pressure, leading to reduced drilling speed and impact force. By replacing it with the Toparts 3115580800 seal, you can restore your rock drill's full power and productivity.
Cost-Effective Solution: Our aftermarket seal provides a reliable and economical alternative to more expensive OEM parts, helping you manage maintenance costs without compromising on quality or performance.
Product Details:
Part Number: 3115580800
Compatible Model: Atlas Copco MD20 Hydraulic Rock Drill
Application: Hydraulic Seal
Manufacturer: Toparts
Don't let a small leak compromise your drilling operations. Invest in the Toparts 3115580800 seal and keep your Atlas Copco MD20 Hydraulic Rock Drill performing at its best.
Ready to secure your machine's performance? Contact Toparts today to learn more or to place your order!
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
