English

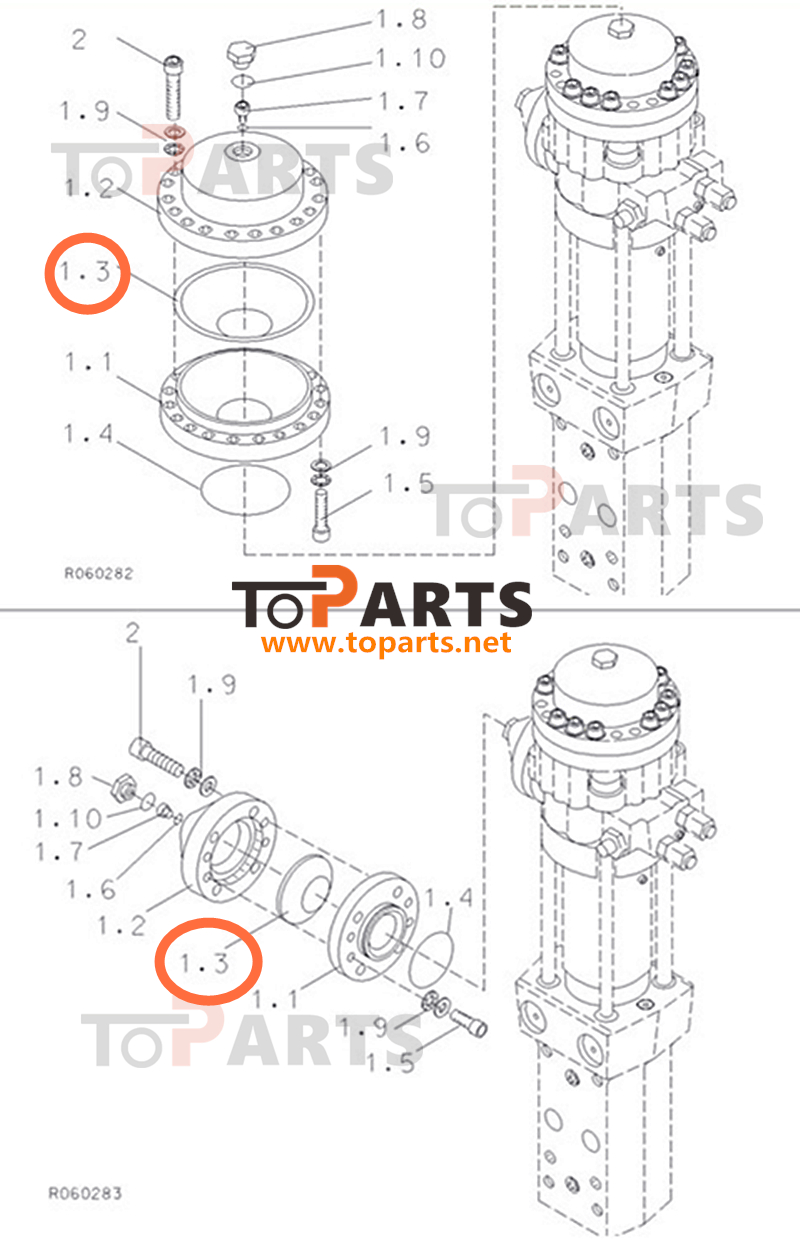

Parts list
|
Item |
Descri |
Part no. |
Qty |
|
1 |
Low pressure accumulator (incl.parts 1.1-1.10) |
100234 |
1 |
|
1.1 |
Accumulator bottom |
100233 |
1 |
|
1.2 |
Accumulator cover |
100232 |
1 |
|
1.3 |
Membrane |
20604 |
1 |
|
1.4 |
O-ring |
90032 |
1 |
|
1.5 |
HeX. socket screw |
91105 |
8 |
|
1.6 |
usit-ring |
90056 |
1 |
|
1.7 |
Filling plug |
042074 |
1 |
|
1.8 |
shield plug |
400300 |
1 |
|
1.9 |
Lock washer |
90597 |
20 |
|
1.10 |
O-ring |
910006 |
1 |
|
2 |
HeX. socket screw |
900004 |
12 |
|
|
*) Are included in seal set |
|
|
|
1 |
High pressure accumulator (incl.parts 1.1-1.10) |
200201 |
1 |
|
1.1 |
Accumulator bottom |
200199 |
1 |
|
1.2 |
Accumulator cover |
200200 |
1 |
|
1.3 |
Membrane |
41713 |
1 |
|
1.4 |
O-ring |
90025 |
1 |
|
1.5 |
HeX. socket screw |
91005 |
4 |
|
1.6 |
usit-ring |
90056 |
1 |
|
1.7 |
Filling plug |
42074 |
1 |
|
1.8 |
shield plug |
400300 |
1 |
|
1.9 |
Lock washer |
90597 |
8 |
|
1.10 |
O-ring |
910006 |
1 |
|
2 |
HeX. socket screw |
91105 |
4 |
|
|
*) Are included in seal set |
|
|
Our customers

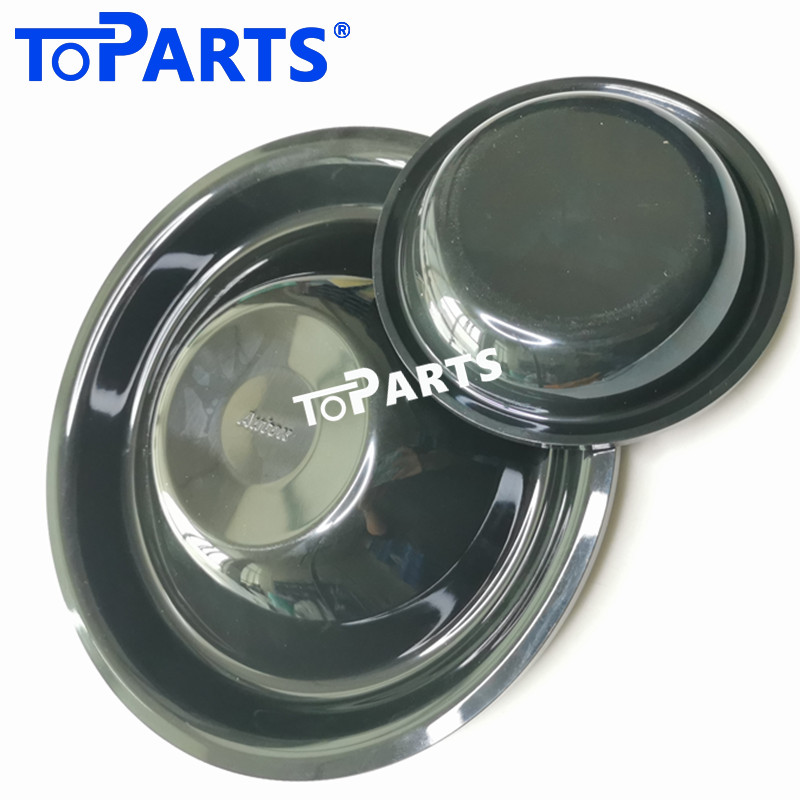

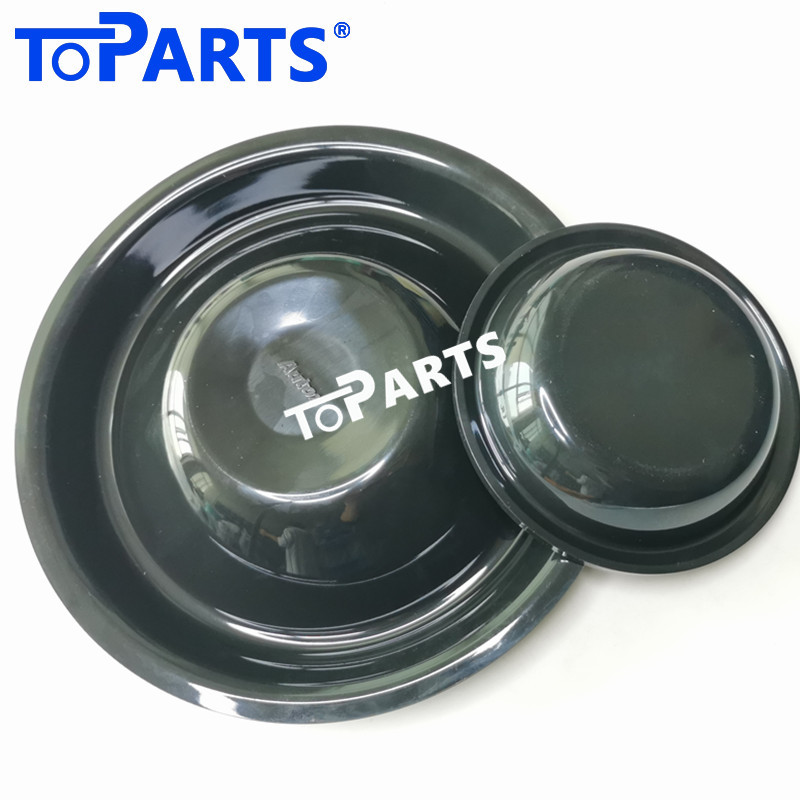

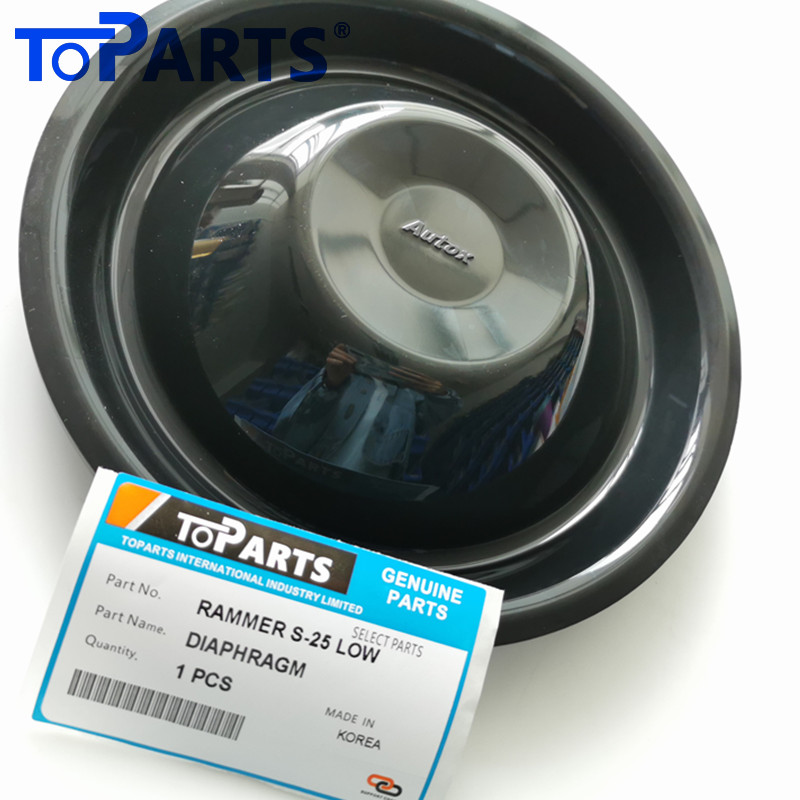

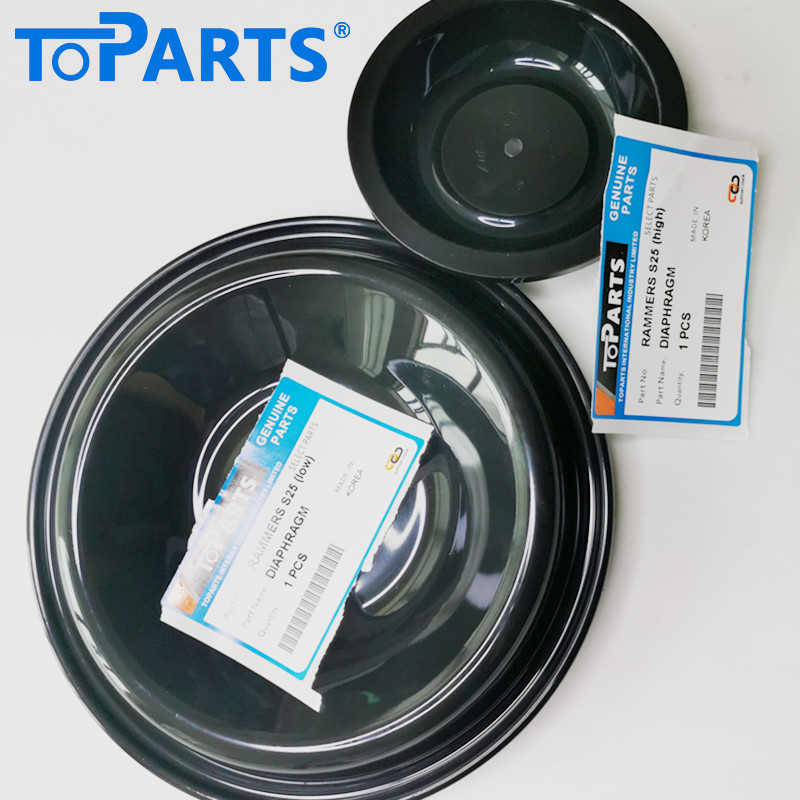

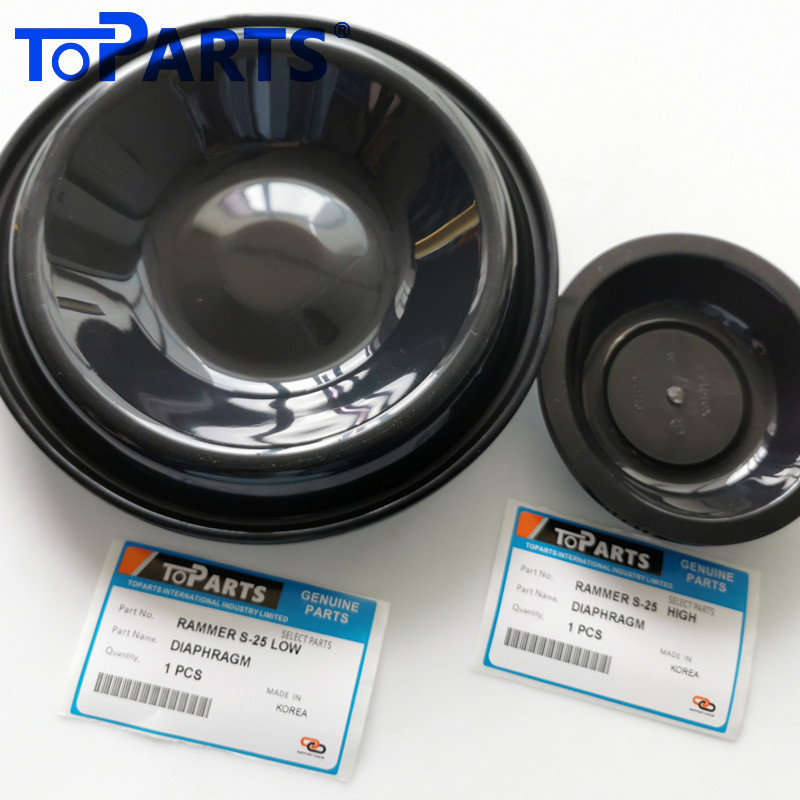

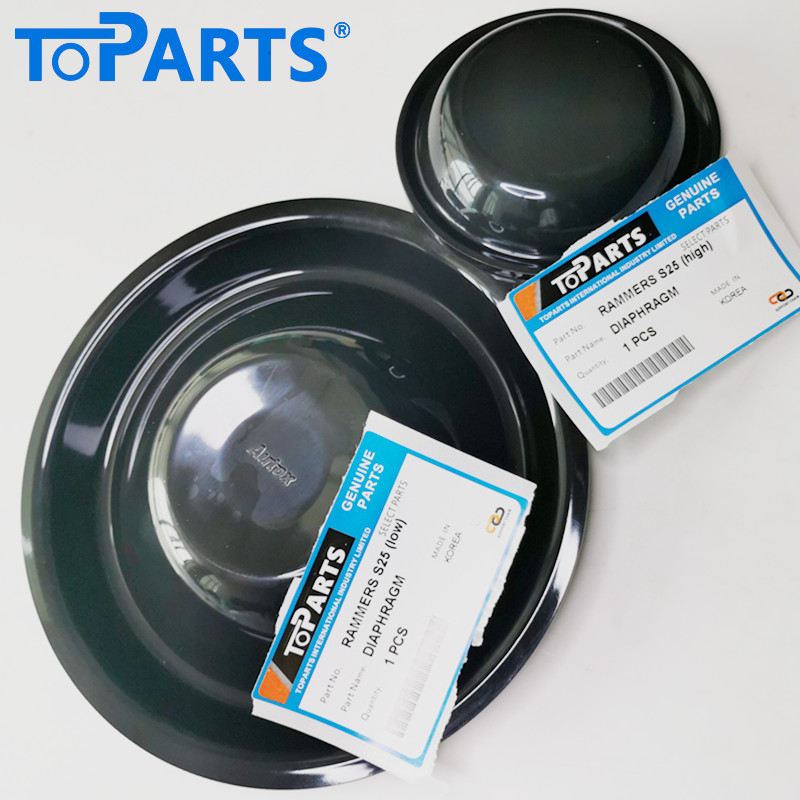

Restore the optimal performance of your Rammer S25 hydraulic breaker with the high-quality Toparts 20604 hydraulic breaker membrane. As a crucial component in your hydraulic hammer's accumulator, this membrane (also known as a diaphragm) is essential for maintaining consistent gas pressure and impact force.
Engineered for Rammer S25 Breakers
The Toparts 20604 membrane is a precision-engineered aftermarket replacement designed to perfectly fit the Rammer S25 model. It corresponds to the original part number 41713, ensuring seamless compatibility and reliable performance. We understand that a properly functioning membrane is critical for your breaker's efficiency and longevity.
Key Features and Benefits:
Precision Fit: This membrane is manufactured to the exact specifications of the Rammer S25, providing a secure and effective seal within the accumulator.
Durable, High-Quality Materials: Made from robust, high-tensile elastomers, our membrane is built to withstand the extreme pressures, rapid cycles, and demanding conditions of hydraulic breaking. It offers excellent resistance to heat and pressure.
Restores Impact Power: A damaged or worn membrane can lead to pressure loss in the accumulator, resulting in a significant decrease in your breaker's impact energy. Replacing it with the Toparts 20604 membrane restores your hammer's full force and productivity.
Cost-Effective Solution: Our aftermarket membrane provides a reliable, high-performance alternative to more expensive OEM parts, helping you manage maintenance costs without compromising on quality.
Product Details:
Part Number: 20604
OEM Cross-Reference: 41713
Compatible Model: Rammer S25 Hydraulic Hammer
Application: Hydraulic Breaker Accumulator Diaphragm / Membrane
Material: High-grade elastomer composite
Manufacturer: Toparts
Don't let a faulty membrane compromise your work. Ensure your Rammer S25 operates at maximum efficiency. Choose the reliable and durable Toparts 20604 hydraulic breaker membrane for your next repair.
Ready to get your hydraulic hammer back to full power? Contact Toparts or your local dealer today to order!
