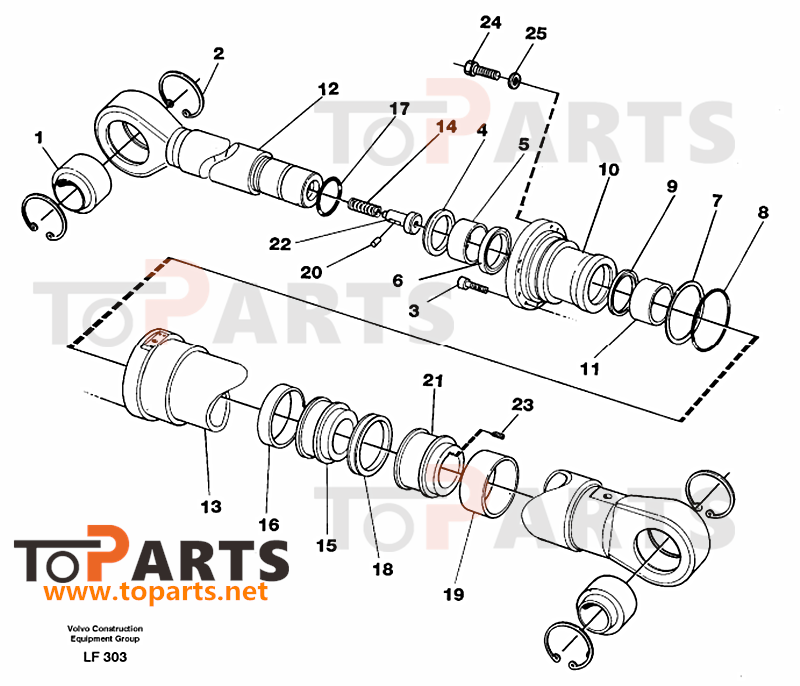

Parts list
|
NO. |
Part Number |
Quantity |
Item Name |
|
|
VOE14254685 |
|
Hydraulic cylinder |
|
1 |
VOE14013647 |
2 |
•Link bearing |
|
2 |
VOE951090 |
4 |
•Retaining ring |
|
3 |
VOE949544 |
11 |
•Hex. socket screw |
|
4 |
VOE11005061 |
1 |
•Scraper ring |
|
5 |
VOE14250573 |
1 |
•Bushing |
|
6 |
VOE4784050 |
1 |
•Piston rod seal |
|
7 |
VOE14044038 |
1 |
•Back-up ring |
|
8 |
VOE925030 |
1 |
•O-ring |
|
9 |
VOE14215246 |
1 |
•Seal |
|
10 |
VOE14261092 |
1 |
•End plate |
|
11 |
VOE14250573 |
1 |
•Bushing |
|
12 |
VOE14345730 |
1 |
•Piston rod |
|
13 |
VOE14236489 |
1 |
•Cylinder |
|
14 |
VOE14043067 |
1 |
•Compression spring |
|
15 |
VOE14237771 |
1 |
•Piston |
|
16 |
VOE14235207 |
1 |
•Guide ring |
|
17 |
VOE13960230 |
1 |
•O-ring |
|
18 |
VOE15068548 |
1 |
•Piston seal |
|
19 |
VOE14235238 |
1 |
•Guide ring |
|
20 |
VOE14235959 |
1 |
•Pin |
|
21 |
VOE14346145 |
1 |
•Piston |
|
22 |
VOE14236486 |
1 |
•Slide |
|
23 |
VOE14014737 |
1 |
•Set screw |
|
24 |
VOE13955294 |
3 |
•Screw |
|
25 |
VOE11055612 |
3 |
•Plain washer |
|
|
VOE14024293 |
REQ |
•Locking fluid |
|
|
VOE11997091 |
1 |
Sealing kit |
Product Description

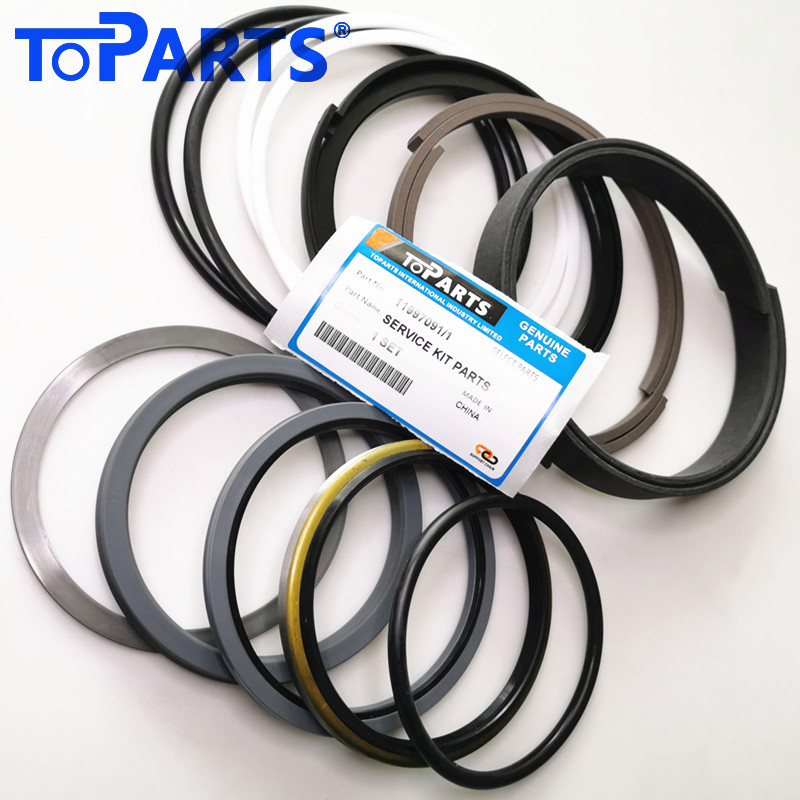

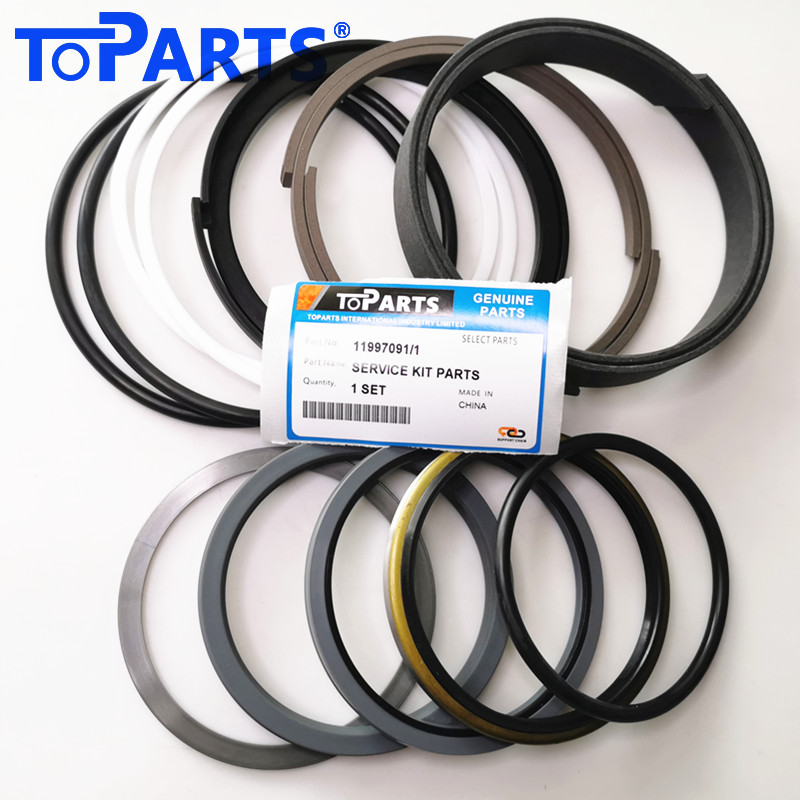

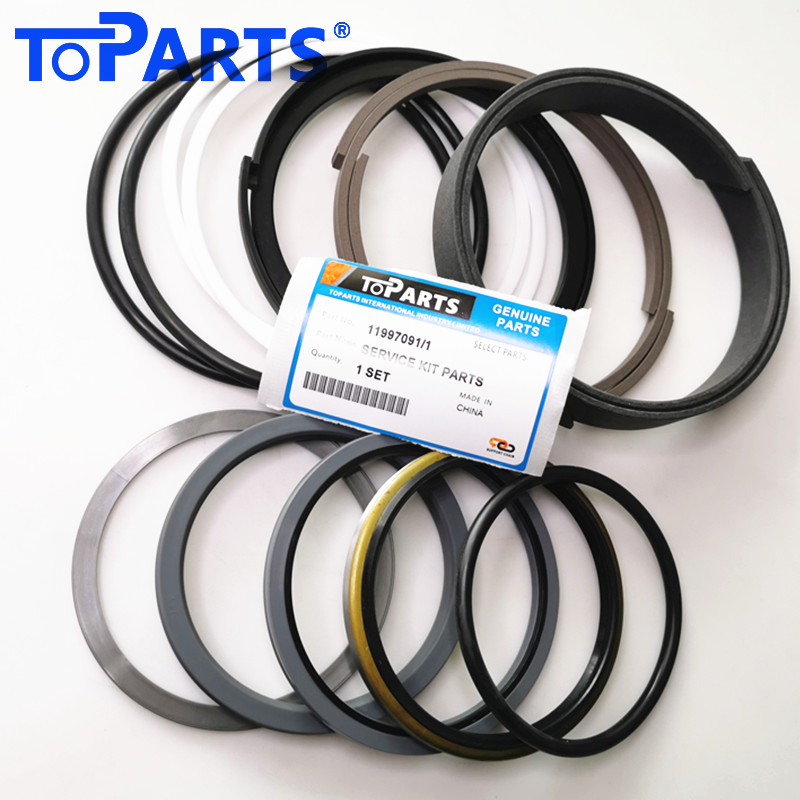

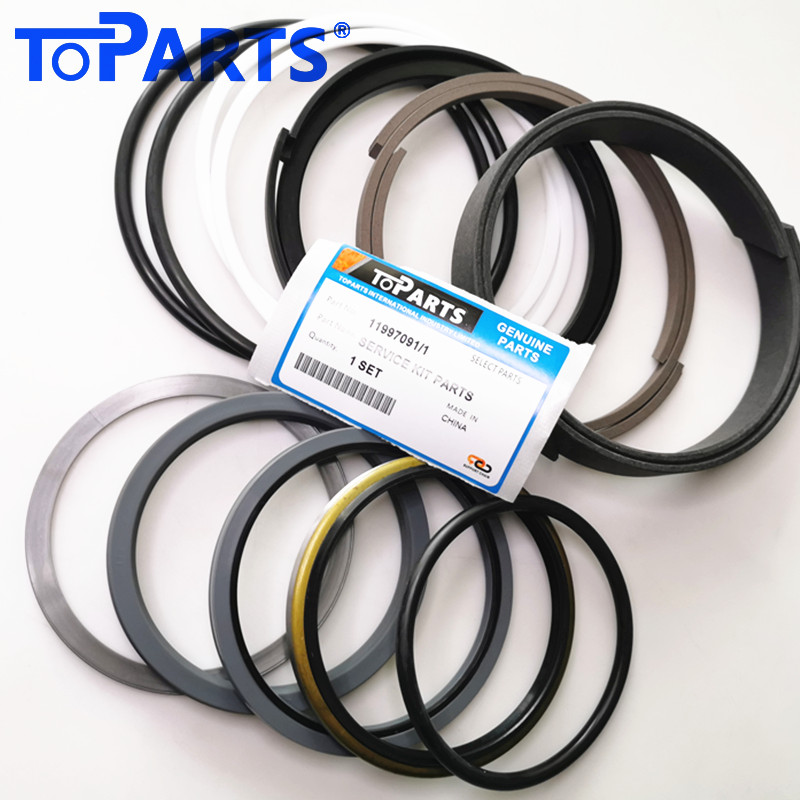

High-Performance Bucket Cylinder Seal Kit for Volvo EC230B Excavators
Restore the digging power and hydraulic efficiency of your Volvo EC230B with this premium Bucket Cylinder Seal Kit. Specifically engineered for the rigorous demands of excavation, this kit (Part Numbers 11997091 and 14265466) provides a professional-grade solution for repairing leaking or worn-out bucket cylinders.
At Toparts, we manufacture our seal kits using advanced materials designed to withstand the continuous friction, high-pressure cycles, and extreme temperatures typical of heavy-duty excavation work.
Product Features:
Exact Fitment: Tailored specifically for the Volvo EC230B Excavator bucket hydraulic system.
Dual Part Number Support: Fully compatible with OEM numbers 11997091 and 14265466.
Durable Materials: Utilizes high-grade Polyurethane (PU) and Nitrile (NBR) for maximum resistance to wear, heat, and hydraulic fluids.
Leak-Free Performance: Precision-engineered to maintain a tight seal under high pressure, ensuring smooth and powerful bucket movements.
Complete Rebuild Kit: Includes all essential rod seals, piston seals, wiper/dust seals, and O-rings for a professional and lasting repair.
Technical Specifications:
Machine Brand: Volvo
Machine Model: EC230B
Machine Type: Excavator
Component Type: Bucket Cylinder / Digging Cylinder
Part Numbers: 11997091, 14265466
Condition: Brand New Aftermarket Replacement
