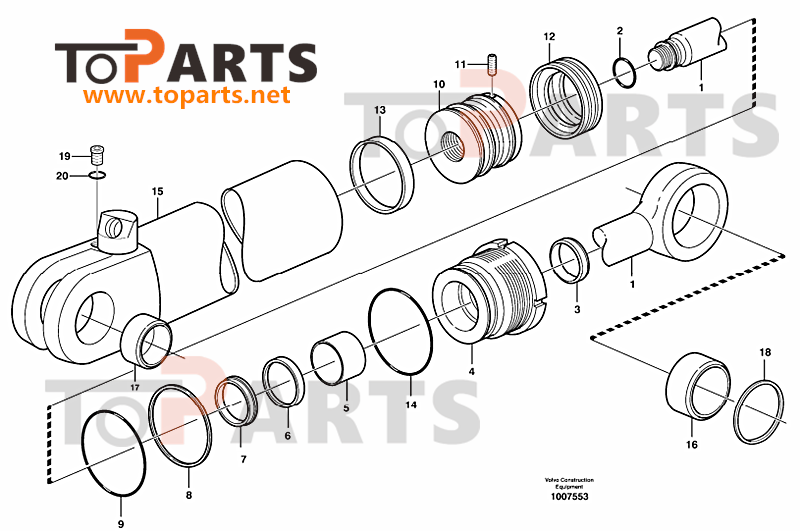

Parts list
|
NO. |
Part Number |
Quantity |
Product Name |
|
|
VOE16202599 |
1 |
Hydraulic cylinder |
|
1 |
VOE11709540 |
1 |
•Piston rod |
|
2 |
|
1 |
•O-ring |
|
3 |
|
1 |
•Scraper |
|
4 |
VOE11709541 |
1 |
•Piston rod guide |
|
5 |
|
1 |
•Guide Ring |
|
6 |
|
1 |
•Piston Rod Seal |
|
7 |
|
1 |
•Lock Ring |
|
8 |
|
1 |
•Back-up ring |
|
9 |
|
1 |
•O-ring |
|
10 |
VOE11709542 |
1 |
•Piston |
|
11 |
|
1 |
•Screw |
|
12 |
|
1 |
•Piston seal |
|
13 |
|
1 |
•Guide Ring |
|
14 |
|
1 |
•O-ring |
|
15 |
|
1 |
•Cylinder tube |
|
16 |
VOE11711135 |
1 |
•Bushing |
|
17 |
VOE11711974 |
2 |
•Bushing |
|
18 |
VOE11883674 |
4 |
Seal |
|
19 |
VOE984654 |
1 |
Plug |
|
|
VOE984473 |
1 |
•O-ring |
|
|
VOE11709543 |
1 |
Sealing kit |
|
|
VOE15173429 |
1 |
Sealing kit |
Our advantage: original system data to ensure accurate size

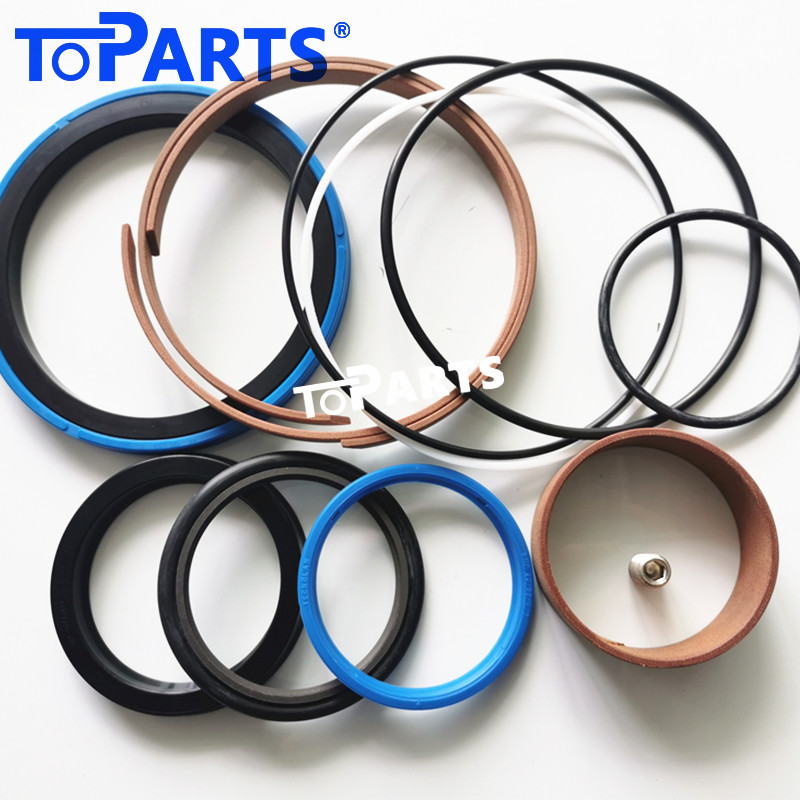

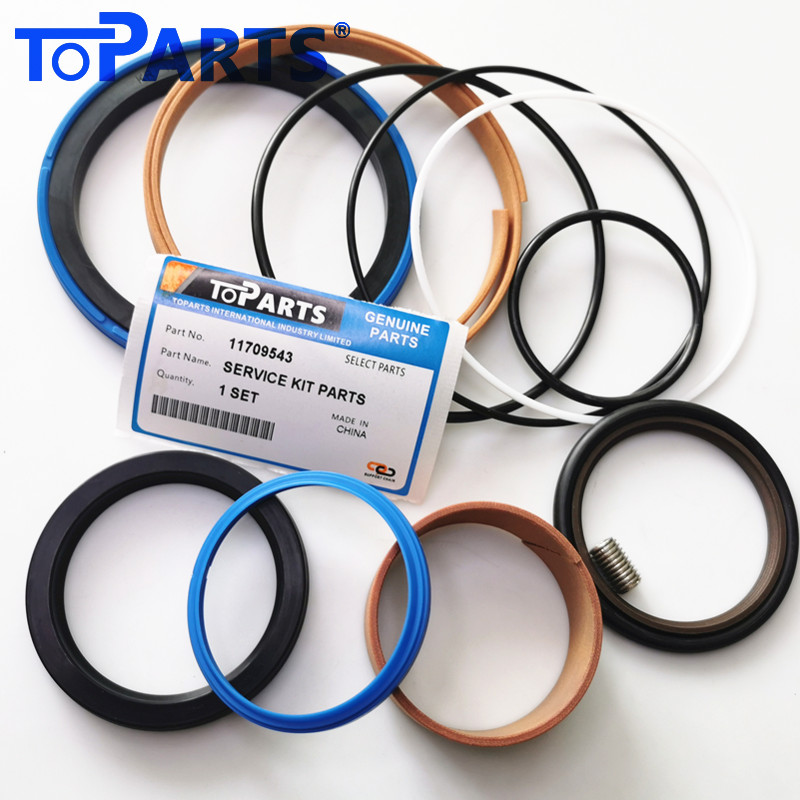

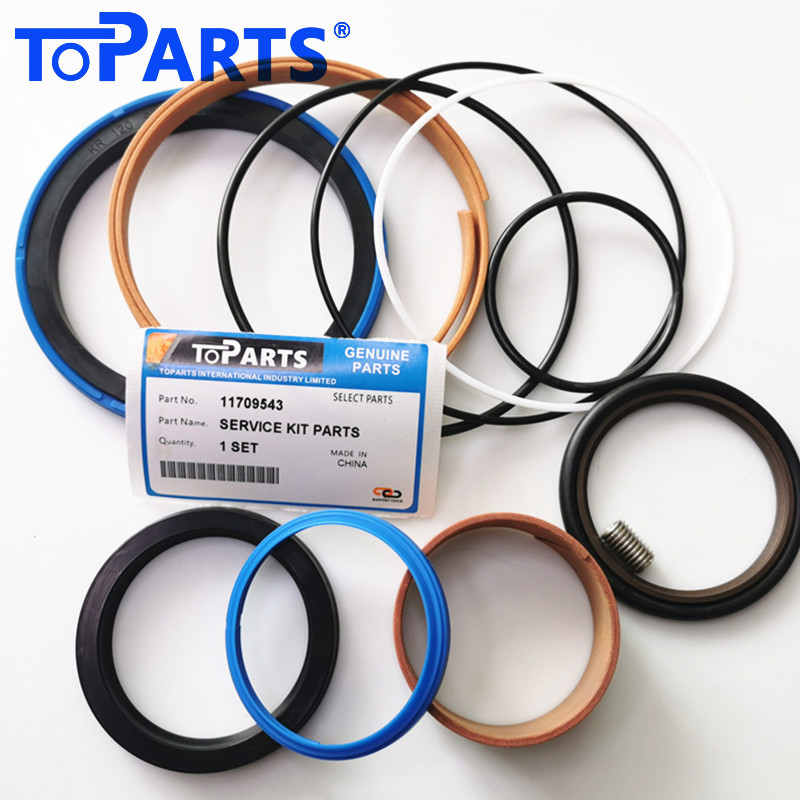

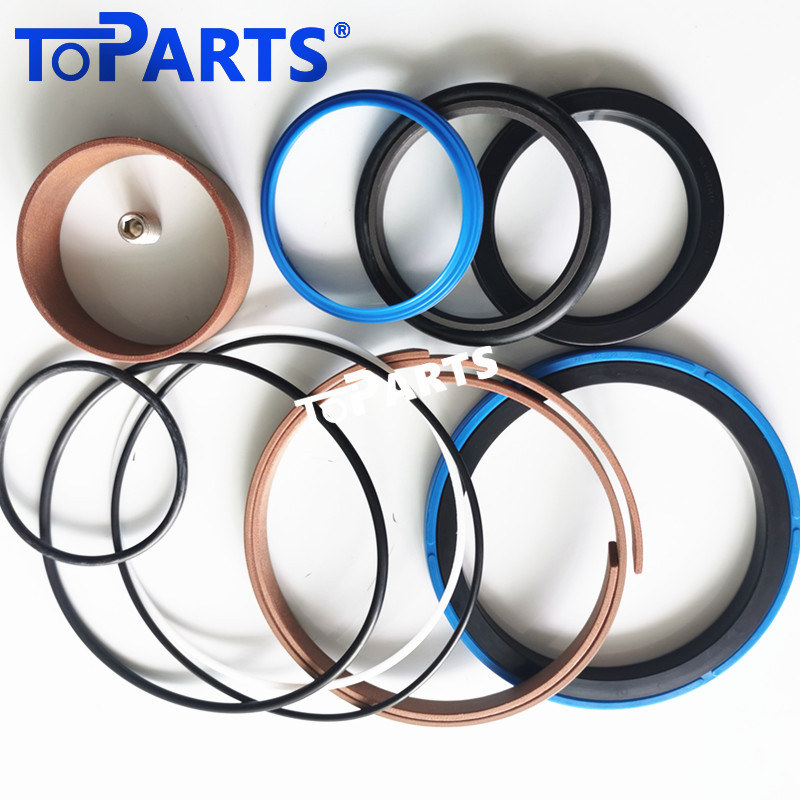

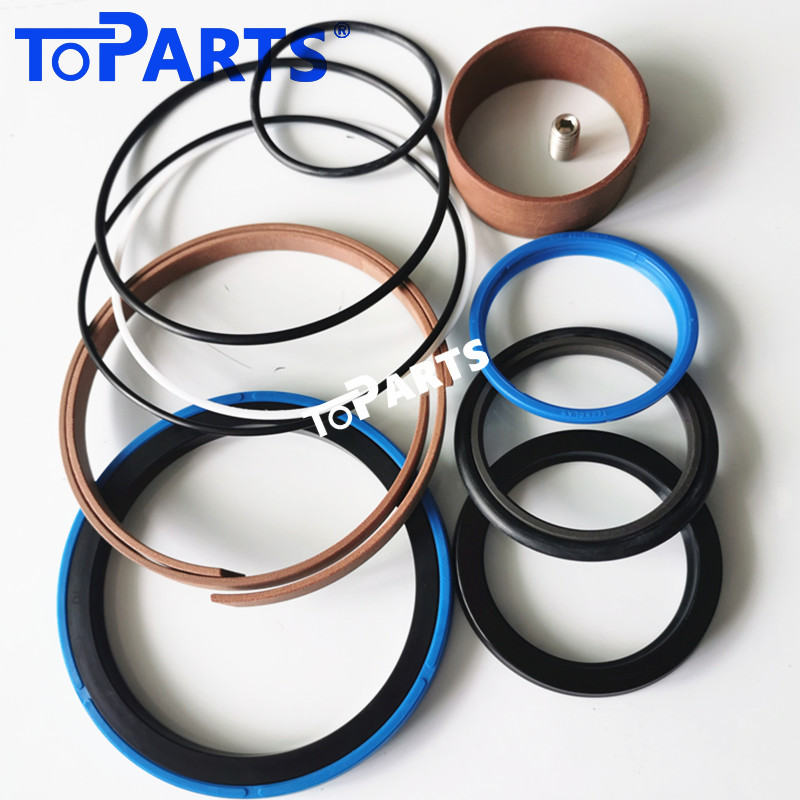

Toparts 11709543 / 16202599 Hydraulic Cylinder Seal Kit for Volvo BL70 Dipper Cylinder
Restore the digging power and precision of your Volvo backhoe with the Toparts 11709543 (16202599) Hydraulic Seal Kit. Specifically engineered for the Volvo BL70 Backhoe Loader, this premium repair kit is designed to eliminate hydraulic drifting and external leaks in the Dipper (Arm) Cylinder, ensuring your machine maintains peak breakout force during intensive excavation tasks.
Precision Sealing for Volvo BL-Series Performance
The Volvo BL70 is a versatile workhorse that demands high-response hydraulics for efficient trenching and loading. The dipper cylinder is subjected to constant mechanical stress, high-pressure cycles, and abrasive environmental debris. Toparts has developed the 11709543 kit using advanced material science to ensure a perfect, long-lasting seal that prevents internal oil bypass, keeping your boom and arm movements smooth and steady.
Key Features and Benefits:
Dual Part Number Compatibility: Fully compatible with Volvo OEM part numbers 11709543 and 16202599. Precision-engineered to fit the Dipper Cylinder on Volvo BL70 models.
High-Performance Material Grade: Manufactured from premium Polyurethane (PU) and specialized Nitril Rubber (NBR). These materials offer exceptional resistance to tearing, high-pressure extrusion, and hydraulic oil degradation.
Eliminates Cylinder Drifting: By providing a perfect seal between the piston and cylinder wall, this kit ensures the dipper arm stays in position without "creeping" under heavy loads.
Advanced Contaminant Exclusion: Features a heavy-duty wiper seal designed to scrape away abrasive mud, grit, and moisture, protecting the expensive chrome rod and internal cylinder bore from scoring.
Thermal Resilience: Engineered to maintain its elasticity and structural integrity across a wide temperature range, preventing seal failure during cold starts or high-heat, continuous shifts.
Complete Repair Solution: This all-in-one kit includes all necessary rod seals, piston seals, buffer seals, and O-rings required for a professional-grade cylinder overhaul.
Product Specifications:
Feature:Details
Feature,Details
Part Number:11709543 / 16202599
Compatible Model:Volvo BL70 Backhoe Loader
Application:Dipper (Arm) Hydraulic Cylinder
Material Grade:Industrial Strength PU, NBR, and Reinforced Phenolic
Operating Pressure:Up to 400 bar
Manufacturer:Toparts
Why Choose Toparts?
Toparts is a leading specialist in the manufacturing of high-performance sealing solutions for heavy earthmoving equipment. We understand that in the construction industry, uptime is your greatest asset. Our Volvo BL70 seal kit provides the perfect balance of OEM-standard durability and exceptional aftermarket value, ensuring your backhoe loader remains a productive and profitable part of your fleet.
Would you like me to check the availability of the matching Boom, Bucket, or Stabilizer cylinder seal kits for your Volvo BL70 to complete a full machine service?
